Concert Project SPEC
Popular 8x8x8m Arch Roof Structure
26’(L)x26’(D)x26’(H)

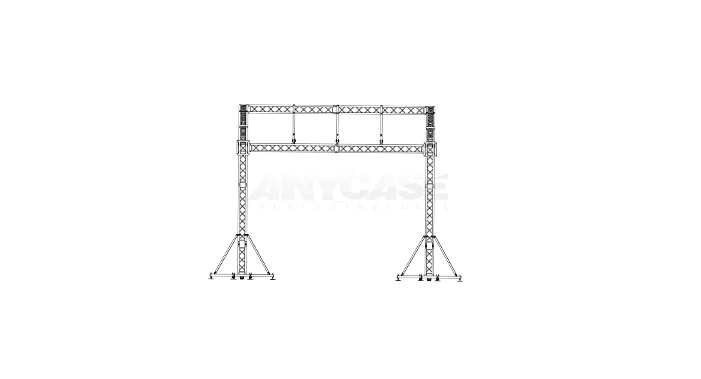

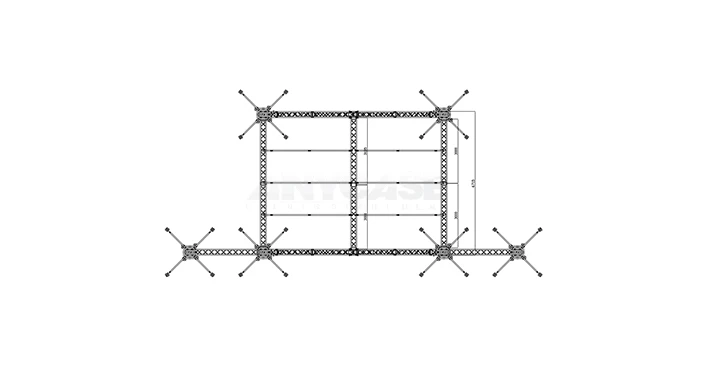

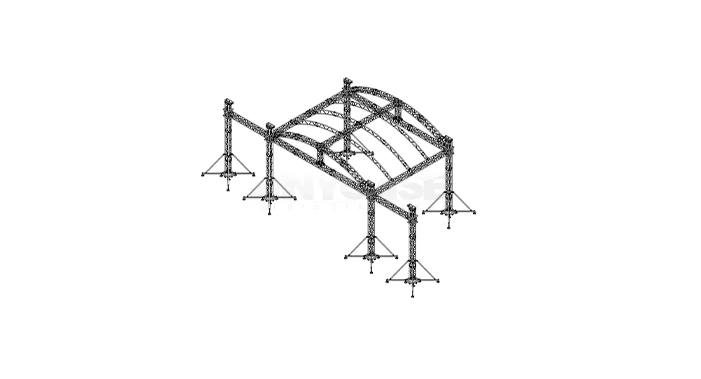

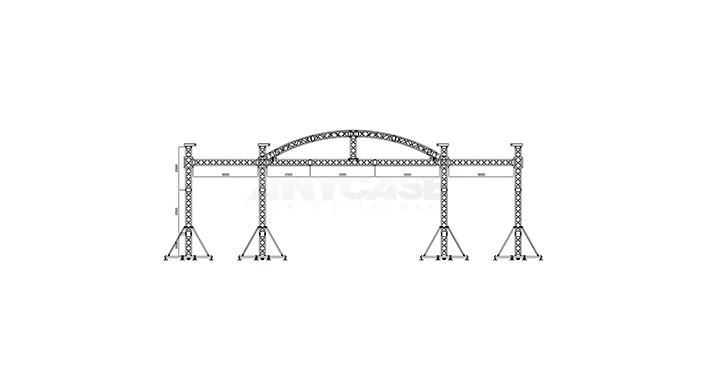

8m(L)x8m(D)x8m(H)
Project Quantity Details and SPEC
| Accessories Parts SPEC | QTY |
|
Aluminum Truss 290*290mm Length 3M for Beam |
8 |
| Aluminum Truss 290*290mm Length 2M for Beam | 4 |
| Aluminum Truss 290*290mm Length 2.5M for Beam |
2 |
| Aluminum Truss 290*290mm Length 3M for Stand |
6 |
| Aluminum Truss 290*290mm Length 2M for Stand |
12 |
| Aluminum Truss 290*290mm Length 1M for Stand |
6 |
| Aluminum Truss 290*290mm Length 3M for Middle Roo |
2 |
| Aluminum Truss 290*290mm Length 2M for Middle Roof |
9 |
| Accessories Parts SPEC | QTY |
| Curved Single-Row Truss for Middle Roof |
16 |
| Roof Corner | 4 |
| Middle corner | 2 |
| Ladder Truss connector | 16 |
| Middle connector for the beam point | 2 |
| Baseplates with wheels | 6 |
| Outtriangle brace support | 24 |
| Sleeve Blocks | 6 |
| Spigot Truss Hinge | 24 |
| Top sections for hanger hosit | 6 |
| Manual Hoist with 8m chains | 6 |
| Lifting Belts | 6 |

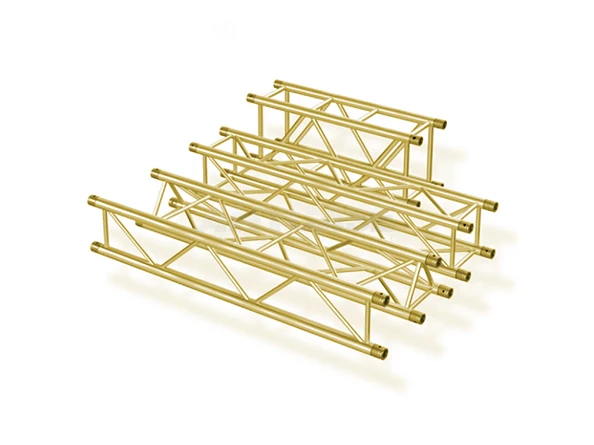

Heavy Duty Structure
Made from Aluminum 6082-T6
Optional Material Thickness
2.0mm / 3.0mm / 4.0mm
Customized Shape
Fancy and free design
Size Range
220x220mm / 290x290mm / 400x400mm / 520x520mm
600x600mm/ 520x600mm / 520x760mm And More
Optional Colors
Black/White/Silver/Gold
How to Setup Triangle Roof Truss for an event?
Roof truss construction installation guide
The setup process is straight forward with the right equipment
Anycase supply durable, easy-to-assemble trussing systems that ensure your event’s production is solid from the ground up
Loading capacity of this project
12m(L)x10m(D)x10m(H) Project loading capacity
| Wings center point | 3500kgs (7700lbs) |
| 40ft Beam Uniformly Distributed Load | 2340kgs (5148lbs) |
| 30ft Beam Uniformly Distributed Load | 2920kgs (6424lbs) |
