No complicated tools. No heavy lifting.
Just reliable stage decks that work for weddings, concerts, exhibitions, and everything in between.
|
Item |
Dimension (cm) |
Dimension (feet) |
Weight(kgs) |
Weight(lbs) |
|

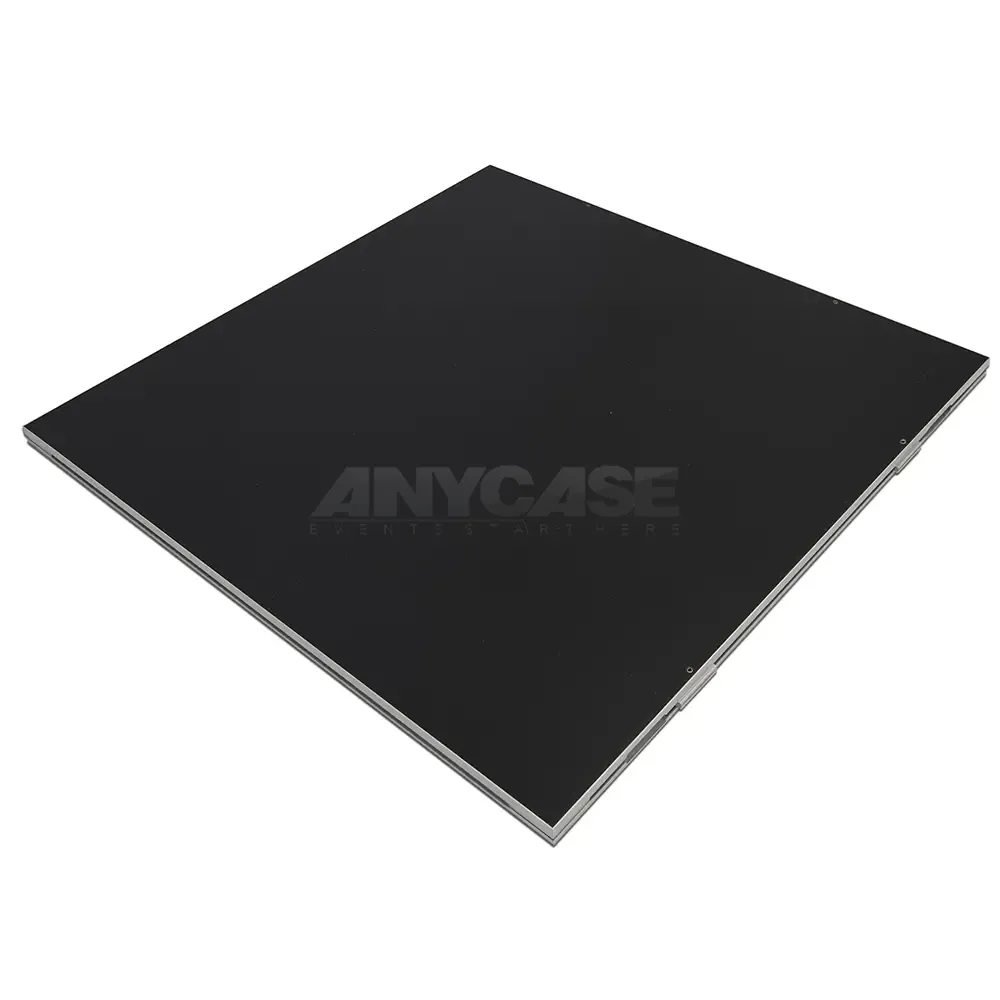

4x4' Panel |
122x122x3cm |
4'x4'x1.18'' |
21.9 kgs |
48.11 lbs |
|
3x3’panel |
91x91x3cm |
3'x3'x1.18'' |
14.2 kgs |
31.28 lbs |
|

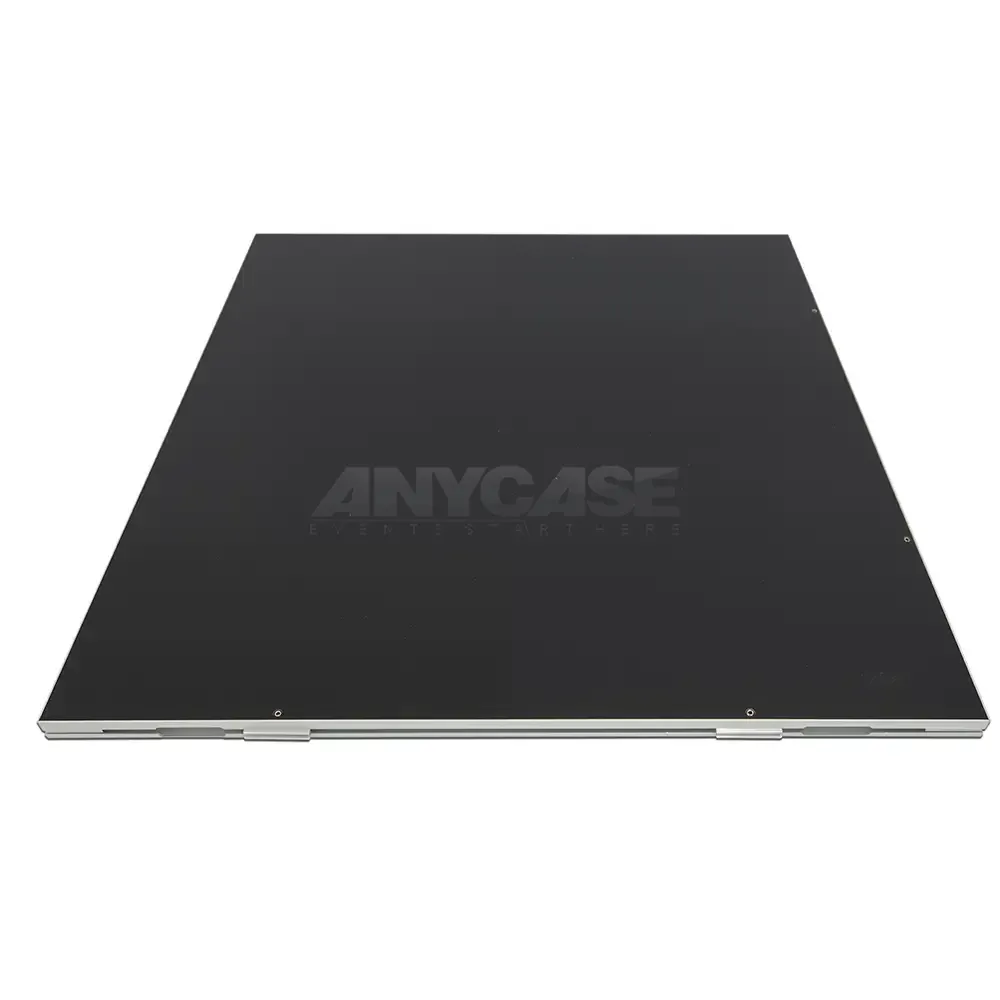

1x1m panel |
100x100x3cm |
3.3'x3.3'x1.18'' |
14.9 kgs |
32.76 lbs |
|
4x8’ panel |
122x244x3cm |
4'x8'x1.18'' |
42. kgs |
92.4 lbs |
|
1x2m’ panel |
100x200x3cm |
3.3'x6.6'x1.18'' |
28. kgs |
61.6 lbs |
|
4x4' Panel (Folding 4x2’) |
122x122x3cm |
4'x4'x1.18'' |
22.5 kgs |
49.50 lbs
|
|
Parameter |
Details |
|---|---|
|
Material |
18mm plywood core + 30mm aluminum frame |
|
Surface |
HPL (High Pressure Laminate) — Fire-proof, Anti-slip |
|
Available Sizes |
3x3ft, 4x4ft, 1x1m, 4x8ft, 1x2m. More size can be customized |
|
Panel Thickness |
30mm (1.18”) |
|
Panel Weight |
From 14.2kg (3x3ft) to 42kg (4x8ft) |
|
Loading Capacity |
700kg per panel (static load) |
|
Connection |
Open Lock merchanisim on each deck. Stairs will required to use clamps to lock with stage riser |
|
Shape Options |

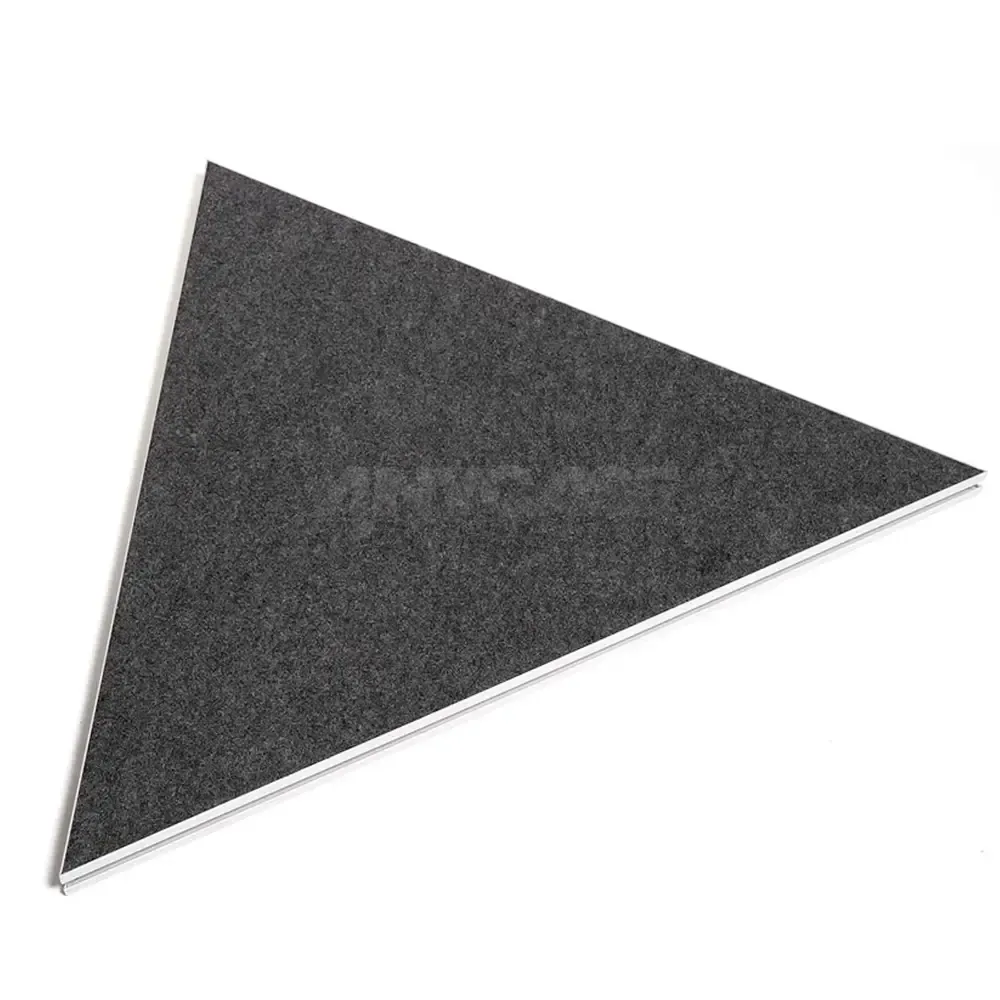

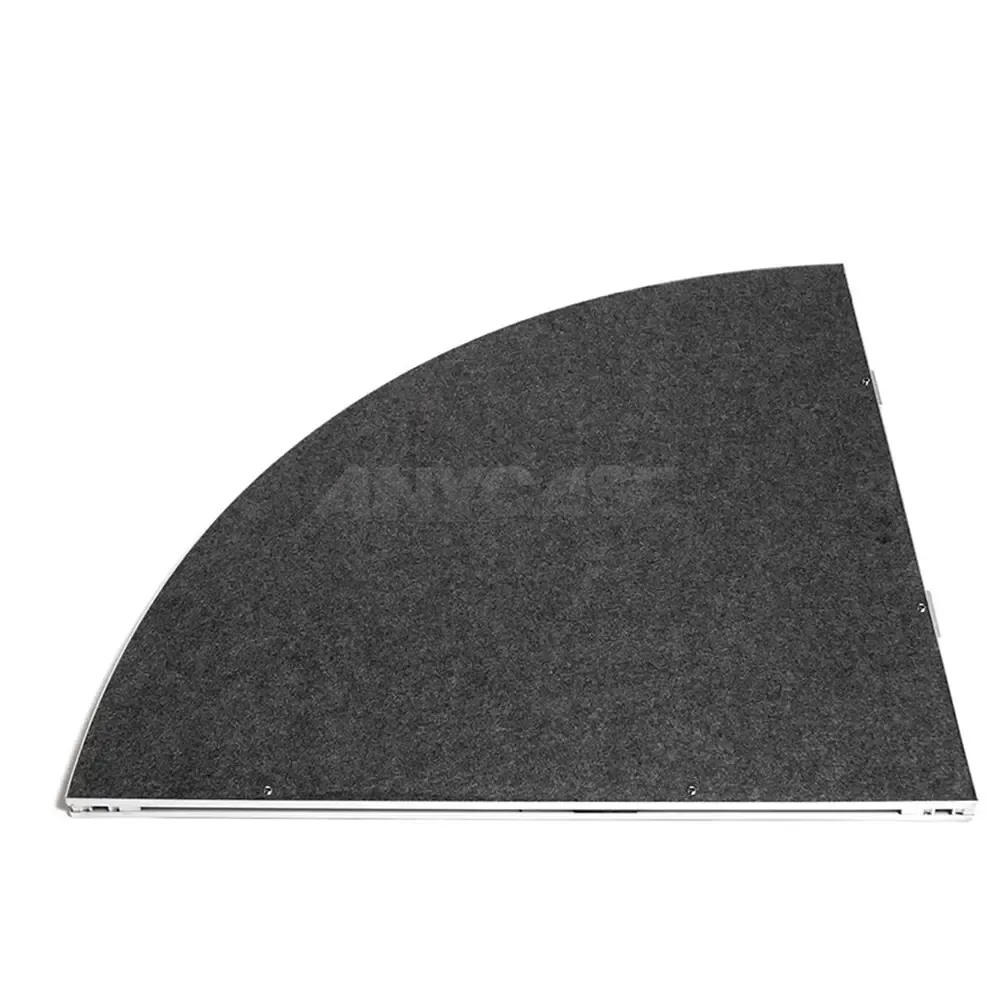

Square, rectangle, triangle, semi-round, circle (customizable) |
|
Surface Finish |
Anti-slip texture / Gloss white / Various colors |
|
Edge Protection |
Aluminum frame with optional edge finishing |
|
Stackable / Foldable |
Yes — Easy storage and transport. |
|
Customizable |
Yes — shape, size, color, and surface finish |
|
Application |
Indoor and outdoor events( Please noted : This stage requires flat ground ) Uneven ground is not good |
