Concert Project SPEC

Popular 9x6x4m Medium Booth Structure

29’(L)x19’(D)x13’(H)

9m(L)x6m(D)x4m(H)

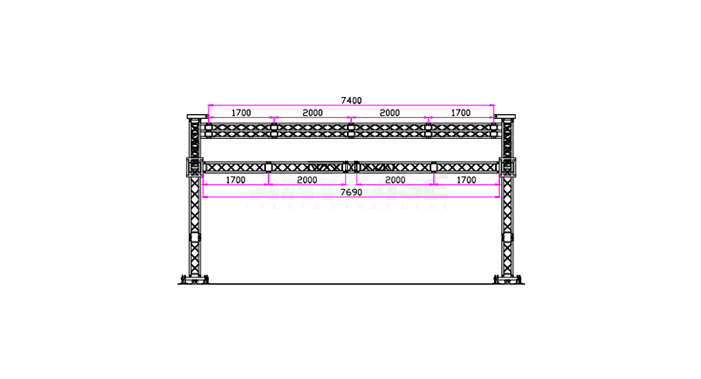

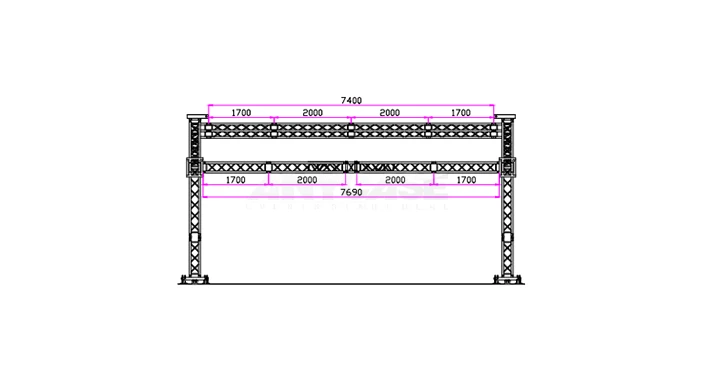

9m(L)x6m(D)x4m(H) Front view

9m(L)x6m(D)x4m(H) Front view

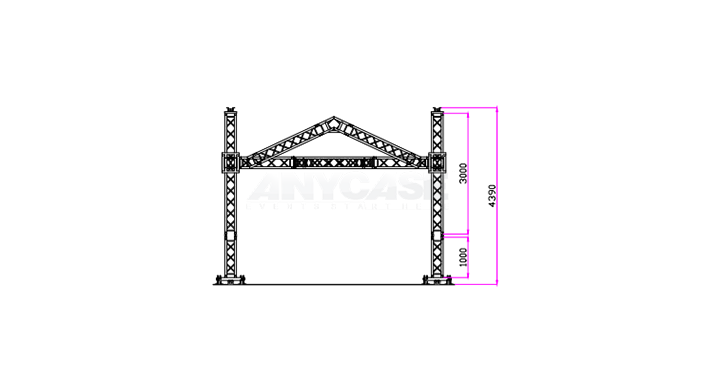

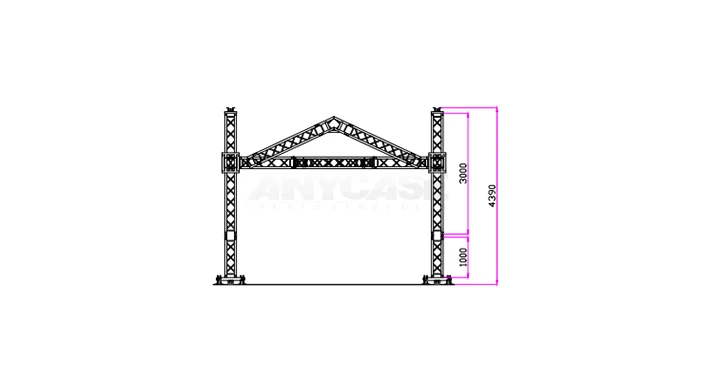

9m(L)x6m(D)x4m(H) Side view

9m(L)x6m(D)x4m(H) Side view

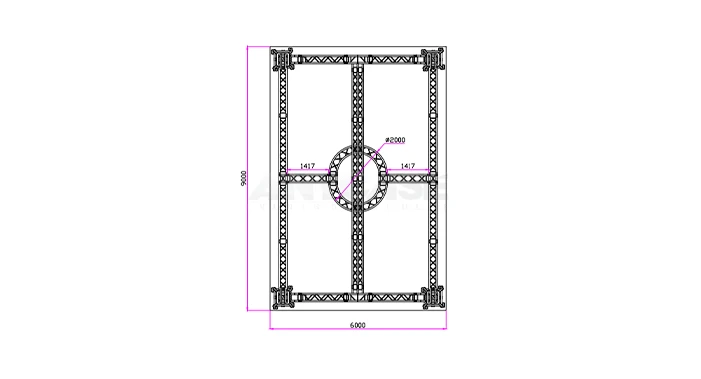

9m(L)x6m(D)x4m(H) Top view

9m(L)x6m(D)x4m(H) Top view

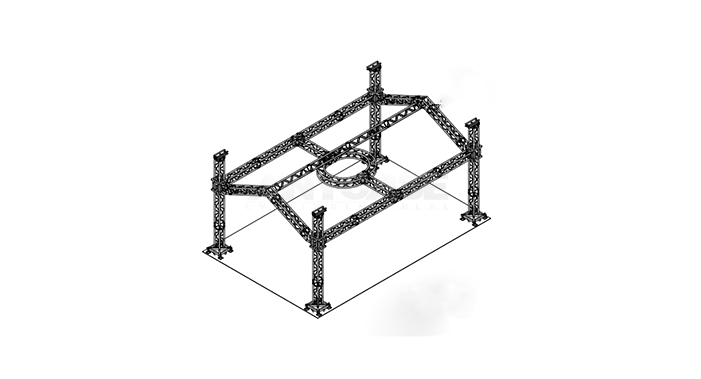

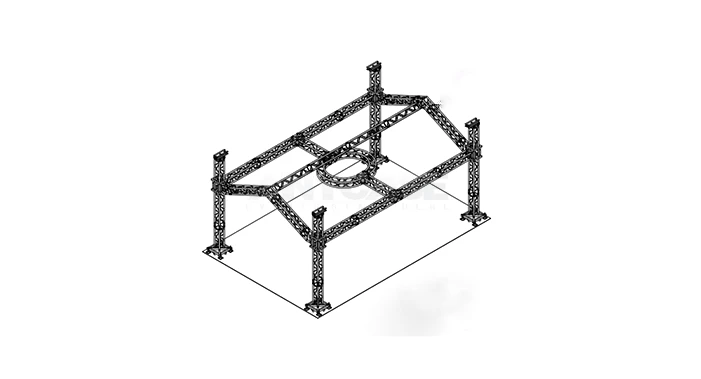

9m(L)x6m(D)x4m(H)  45° view

9m(L)x6m(D)x4m(H) 45° view

Project Quantity Details and SPEC

Accessories Parts SPEC QTY

Aluminum Truss 290*290mm Length 3M for Beam

8
Aluminum Truss 290*290mm Length 3M for Stand 4
Aluminum Truss 290*290mm
Length 1M for Stand
4
Aluminum Truss 290*290mm
Length 3M for Middle Roof
4
Aluminum Truss 290*290mm
Length 2M for Middle Roof
4
Aluminum Truss 290*290mm
Length 1.5M for Middle Roof
2
Aluminum Arc-Truss 290*290mm
Length 3M for Middle Roof
2
Accessories Parts SPEC QTY
Roof Corner 4
Middle corner 6
Baseplates with wheels 4
Sleeve Blocks 4
Spigot Truss Hinge 16
Top sections for hanger hosit 4
Manual Hoist with 8m chains 4
Lifting Belts 4

Heavy Duty Structure

Made from Aluminum 6082-T6

Optional Material Thickness

2.0mm / 3.0mm / 4.0mm

Customized Shape

Fancy and free design

Size Range

220x220mm / 290x290mm / 400x400mm / 520x520mm

600x600mm/ 520x600mm / 520x760mm And More

Optional Colors

Black/White/Silver/Gold

More Solutions and Case Studies

6x3x4 small booth

6x3x4 small booth

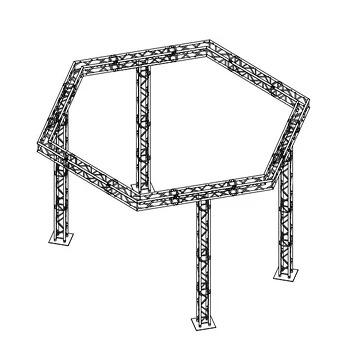

7x7x4m Diamond Design

7x7x4m Diamond Design

8x6x5m Arch Roof with wings

8x6x5m Arch Roof with wings

8x8x8m Arch Roof with wings

8x8x8m Arch Roof with wings

12x8x5 Triangle Roof

12x8x5 Triangle Roof

12x10x8m Arch Roof

12x10x8m Arch Roof

12x12x10m Arch Roof

12x12x10m Arch Roof

How to Set up Triangle Roof Truss for an event?

Roof truss construction installation guide

The setup process is straight forward with the right equipment

assemble the triangular roof structure on the ground, connect the horizontal sections, and use professional hoists for a safe lift

Anycase supply durable, easy-to-assemble trussing systems that ensure your event production is solid from the ground up

Loading capacity of this project

12m(L)x10m(D)x10m(H) Project loading capacity

Wings center point 3500kgs (7700lbs)
40ft Beam Uniformly Distributed Load 2340kgs (5148lbs)
30ft Beam Uniformly Distributed Load 2920kgs (6424lbs)

More loading table sheet

A291-A293 TRUSS

A221-A223 TRUSS

Packing Dimension of this project

Packing dimension of this project
