8x6x5m Arch Roof with wings

8x6x5m Arch Roof with wings

Home / Truss Project / 8x6x5m Arch Roof with wings

We help event production companies to build truss structure

No matter Big Or Small

ANYCASE® is a manufacturer of staging and truss systems

We help event companies worldwide to build safer, smarter, and more cost-efficient setups

No matter big event or small events, contact us for free quote now

Contact Us

Concert Project SPEC

Popular Arch Roof Structure

26’(L)x19’(D)x16’(H)

8m(L)x6m(D)x5m(H)

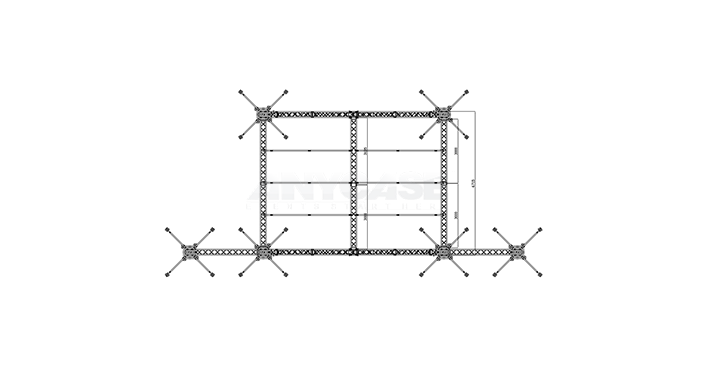

8m(L)x6m(D)x5m(H) Front view

8m(L)x6m(D)x5m(H) Front view

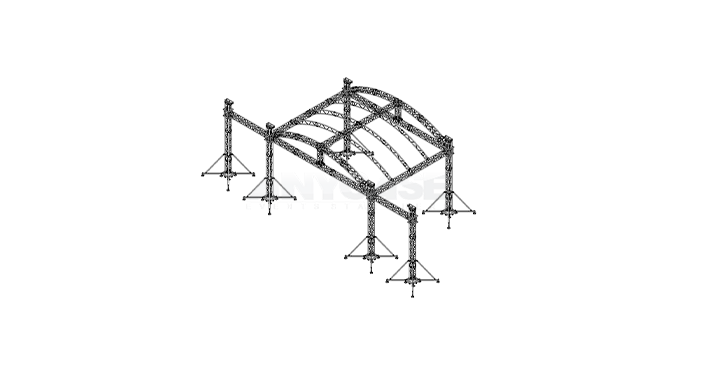

8m(L)x6m(D)x5m(H) Side view

8m(L)x6m(D)x5m(H) Side view

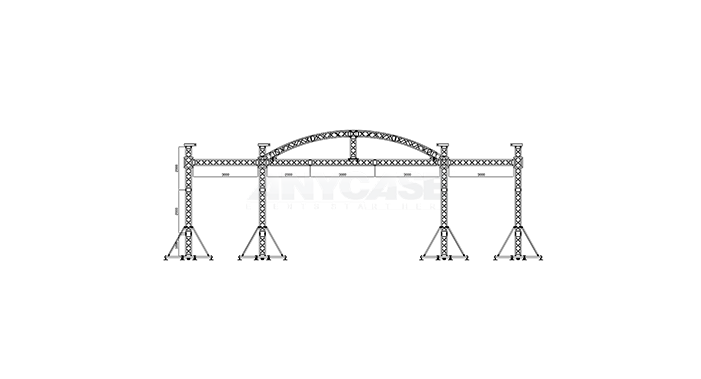

8m(L)x6m(D)x5m(H) Top view

8m(L)x6m(D)x5m(H) Top view

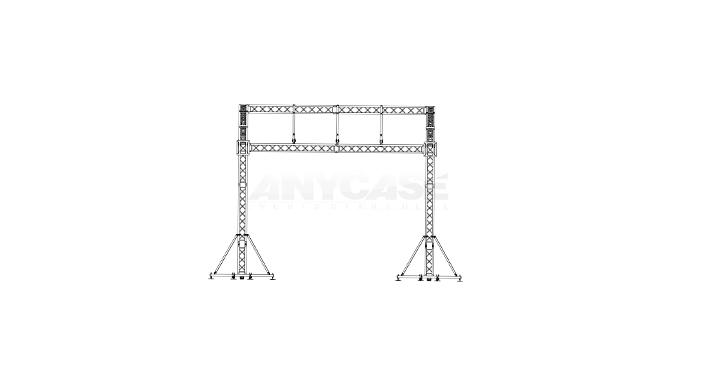

8m(L)x6m(D)x5m(H)  45° view

8m(L)x6m(D)x5m(H) 45° view

Project Quantity Details and SPEC

Accessories Parts SPEC QTY Price
Aluminum Truss 290×290mm Length 3M for Beam 10 $231.00
Aluminum Truss 290×290mm Length 2M for Beam 2 $159.92
Aluminum Truss 290×290mm Length 3M for Stand 6 $231.00
Aluminum Truss 290×290mm Length 1M for Stand 12 $159.92
Aluminum Truss 290×290mm Length 2M for Middle Roof 8 $93.45
Aluminum Truss 290×290mm Length 3M for Middle Roof  2 $231.00
Ladder Truss for Middle Roof 2M 12 $76.65
Roof Corner 4 $149.10
Middle Corner 2 $149.10
Accessories Parts SPEC QTY
Ladder Truss connector 12
Middle connector for the beam point 2
Baseplates with wheels 6
Outtriangle brace support 24
Sleeve Blocks 6
Spigot Truss Hinge 24
Top sections for hanger hosit 6
Manual Hoist with 8m chains 6
Lifting Belts 6

Heavy Duty Structure 8x6x5

Made from Aluminum 6082-T6



Optional Material Thickness

2.0mm / 3.0mm / 4.0mm

Customized Shape

Fancy and free design



Size Range

220x220mm / 290x290mm / 400x400mm / 520x520mm

600x600mm/ 520x600mm / 520x760mm And More

Option Color

Gold/Black/White/Silver

More Solutions and Case Studies

6X3X4m Small Booth

6X3X4m Small Booth

7x7x4m Diamond Design

7x7x4m Diamond Design

8x8x8m Arch Roof with wings

8x8x8m Arch Roof with wings

9x6x4m Medium Booth

9x6x4m Medium Booth

12x8x5 Triangle Roof

12x8x5 Triangle Roof

12x10x8m Arch Roof

12x10x8m Arch Roof

12x12x10m Arch Roof

12x12x10m Arch Roof

How to Setup Triangle Roof Truss for an event?

truss structure

Roof truss construction installation guide

The setup process is straight forward with the right equipment

assemble the triangular roof structure on the ground, connect the horizontal sections, and use professional hoists for a safe lift.

We supply durable, easy-to-assemble trussing systems that ensure your event’s production is solid from the ground up.

Loading capacity of this project

12m(L)x10m(D)x10m(H) Project loading capacity

Wings center point 3500kgs (7700lbs)
40ft Beam Uniformly Distributed Load 2340kgs (5148lbs)
30ft Beam Uniformly Distributed Load 2920kgs (6424lbs)

More Loading table sheet

A291-A293 TRUSS

A221-A223 TRUSS

Packing Dimension of this project

Packing Dimension of this project

Document Download

See All
8x6x5m Arch Roof with wings.pdf

8x6x5m Arch Roof with wings.pdf

8x6x5m Arch Roof with wings.pdf
Truss TUV certificate.pdf

Truss TUV certificate.pdf

Truss TUV certificate.pdf
