Concert Project SPEC

7x7x4m Diamond Design

23’(L)x23’(D)x13’(H)

7m(L)x7m(D)x4m(H)

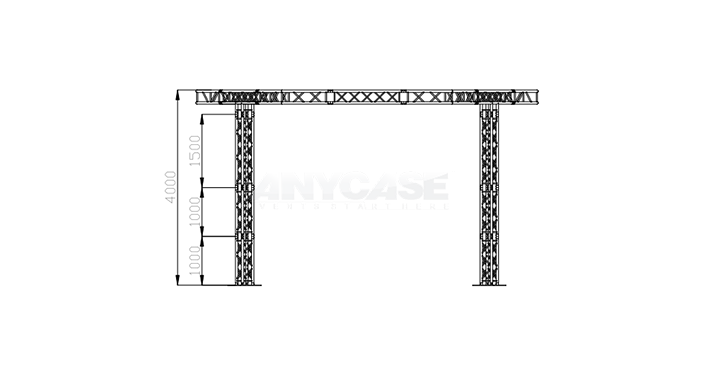

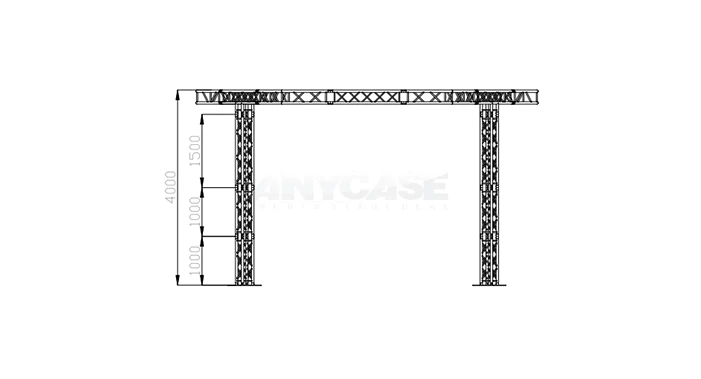

7m(L)x7m(D)x4m(H) Front view

7m(L)x7m(D)x4m(H) Front view

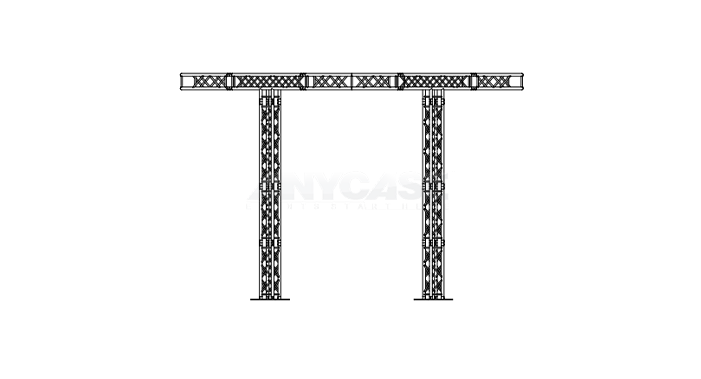

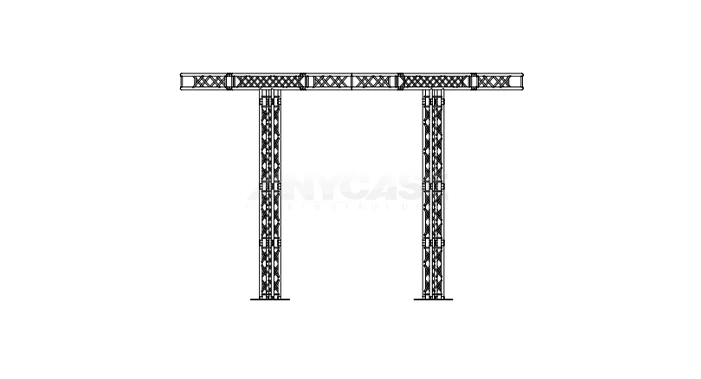

7m(L)x7m(D)x4m(H) Side view

7m(L)x7m(D)x4m(H) Side view

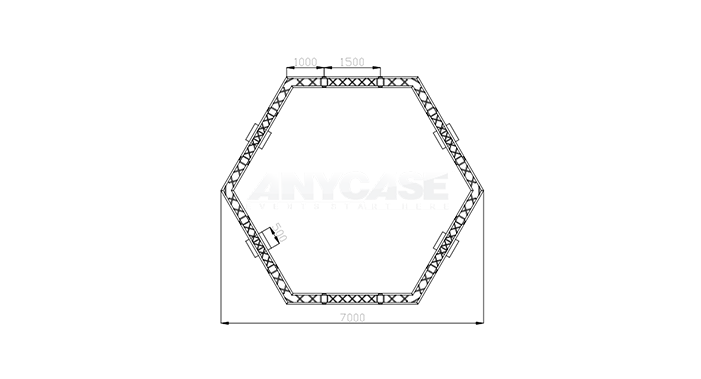

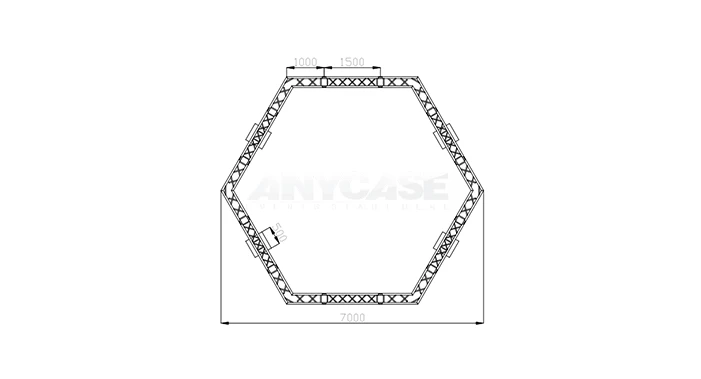

7m(L)x7m(D)x4m(H) Top view

7m(L)x7m(D)x4m(H) Top view

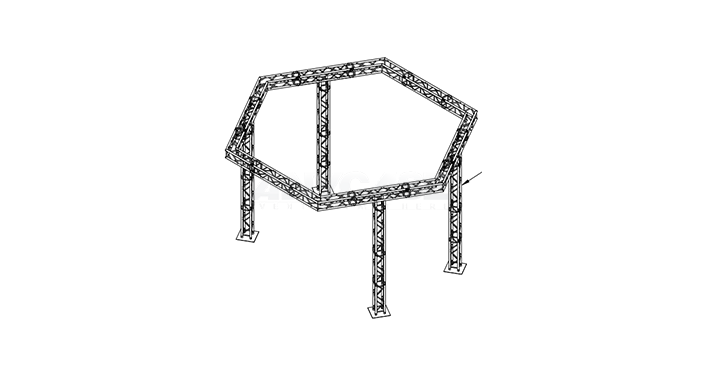

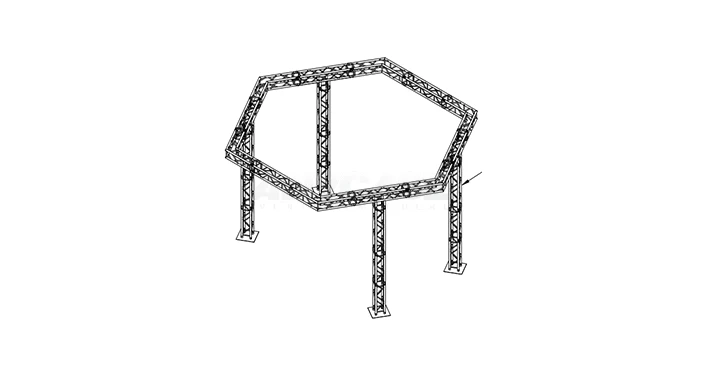

7m(L)x7m(D)x4m(H) 45° Side view

7m(L)x7m(D)x4m(H) 45° Side view

Project Quantity Details and SPEC

Accessories Parts SPEC QTY

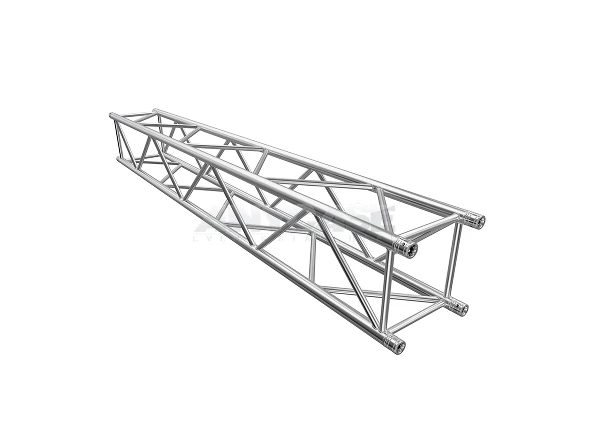

Aluminum Truss 290*290mm Custom Triangular Shape 2M for Beam 6
Aluminum Truss 290*290mm Length 1.5M for Beam 6
Aluminum Truss 290*290mm Length 3M for Stand 4
Aluminum Truss 290*290mm Length 1M for Stand 4
3 way corners 4
Baseplates 24x24" 4
Conicial couplers N
Pins and clips N

Heavy Duty Structure

Made from Aluminum 6082-T6

Optional Material Thickness

2.0mm / 3.0mm / 4.0mm

Customized Shape

Fancy and free design

Size Range

220x220mm / 290x290mm / 400x400mm / 520x520mm

600x600mm/ 520x600mm / 520x760mm And More

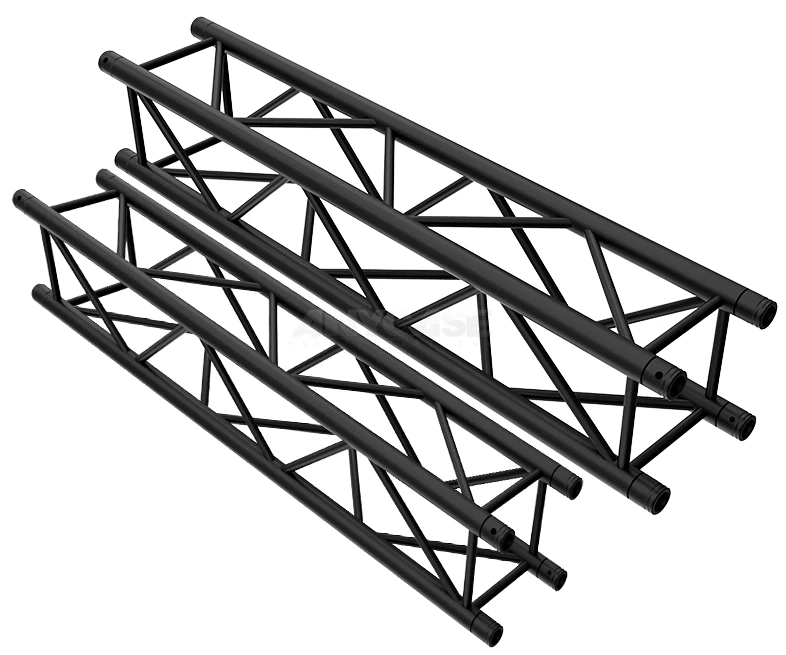

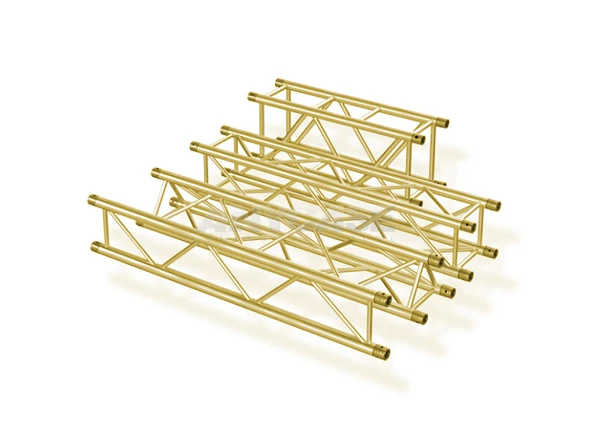

Optional Colors

Black/White/Silver/Gold

More Solutions and Case Studies

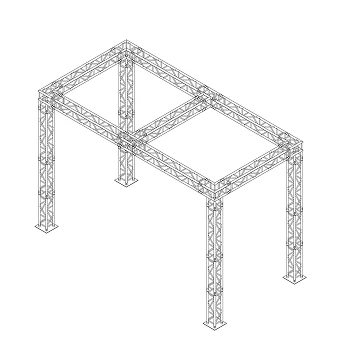

6X3X4M Small Booth

6X3X4M Small Booth

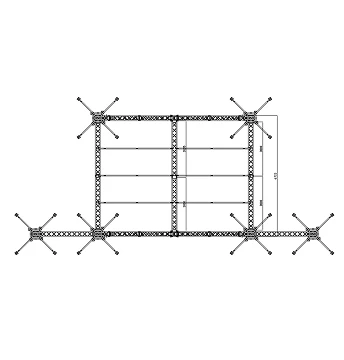

8x6x5m Arch Roof with wings

8x6x5m Arch Roof with wings

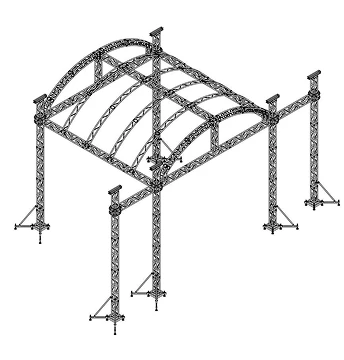

8x8x8m Arch Roof with wings

8x8x8m Arch Roof with wings

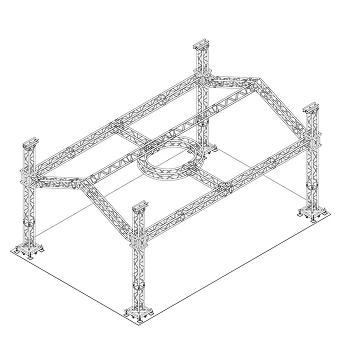

9x6x4m Medium Booth

9x6x4m Medium Booth

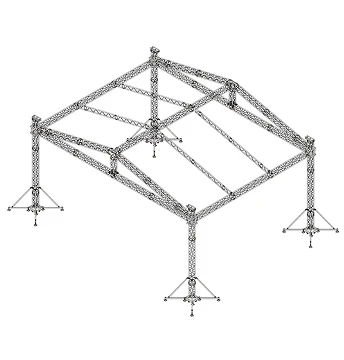

12x8x5 Triangle Roof

12x8x5 Triangle Roof

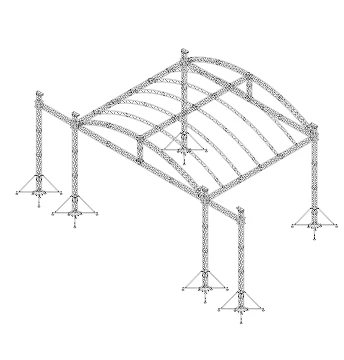

12x10x8m Arch Roof

12x10x8m Arch Roof

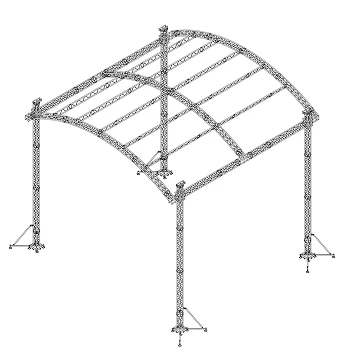

12x12x10m Arch Roof

12x12x10m Arch Roof

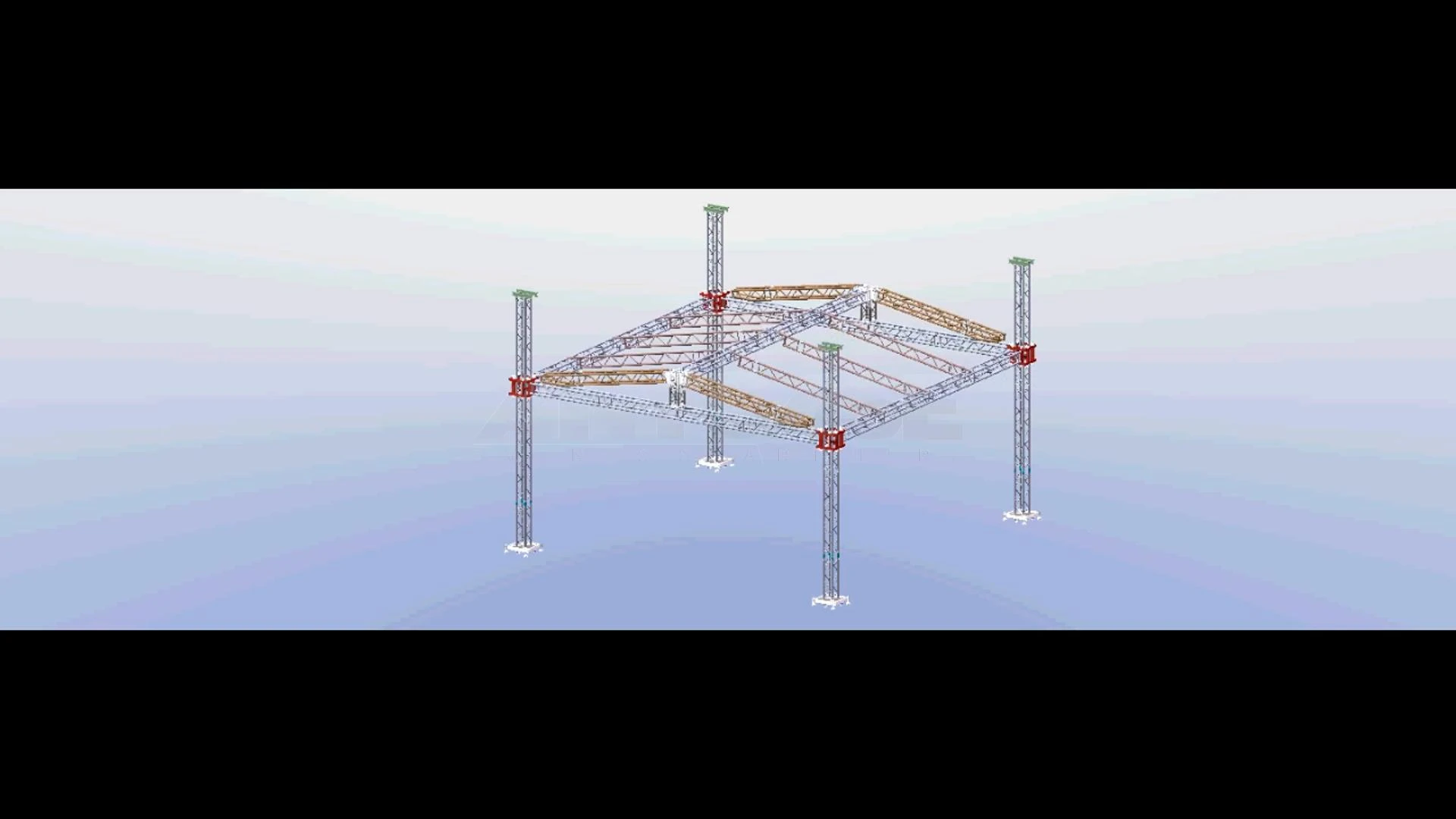

How to Setup Triangle Roof Truss for an event?

Roof truss construction installation guide

The setup process with the right truss equipment-

assemble the triangular roof structure on the ground, connect the horizontal sections, and use professional hoists for a safe lift.

We supply durable, easy-to-assemble trussing systems that ensure your event’s production is solid from the ground up

Loading capacity of this project

12m(L)x10m(D)x10m(H) Project loading capacity

Wings center point 3500kgs (7700lbs)
40ft Beam Uniformly Distributed Load 2340kgs (5148lbs)
30ft Beam Uniformly Distributed Load 2920kgs (6424lbs)

More Loading table sheet

A221-A223 TRUSS

A291-A293 TRUSS

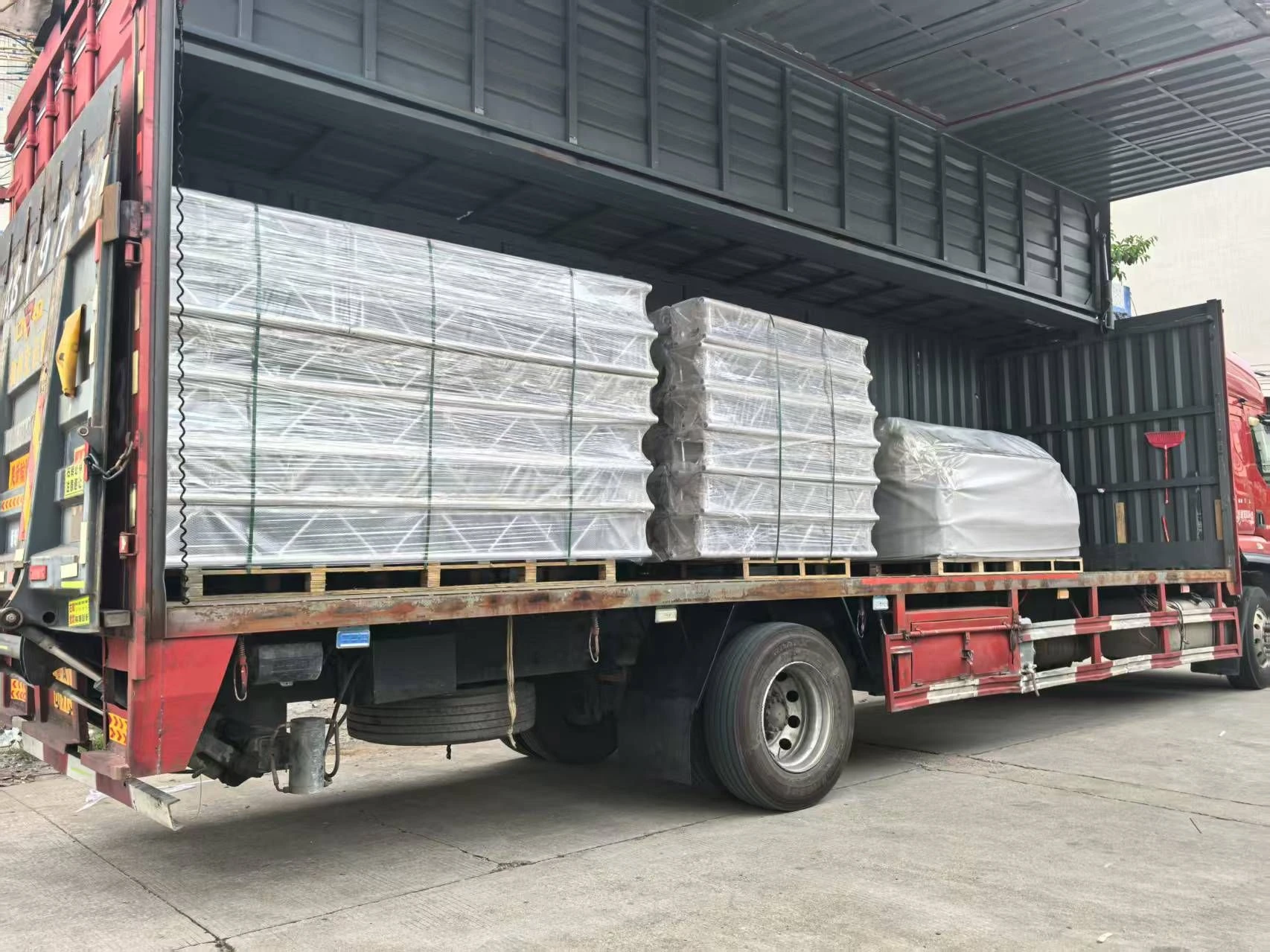

Packing Dimension of this project

Packaging Ways

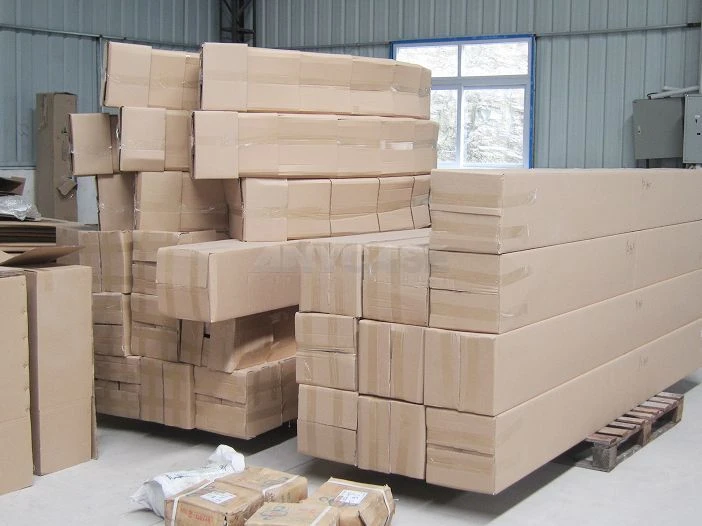

package boxes
