Concert Project SPEC

Popular Small Booth Structure

20'(L)x10'(D)x13'(H)

6m(L)x3m(D)x4m(H)

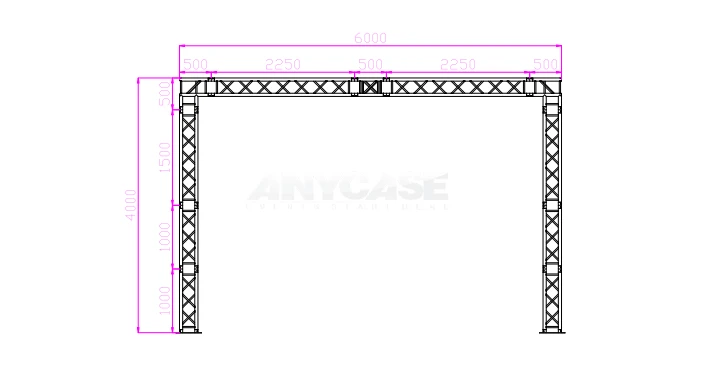

6m(L)x3m(D)x4m(H) Front view

6m(L)x3m(D)x4m(H) Front view

6m(L)x3m(D)x4m(H) Side view

6m(L)x3m(D)x4m(H) Side view

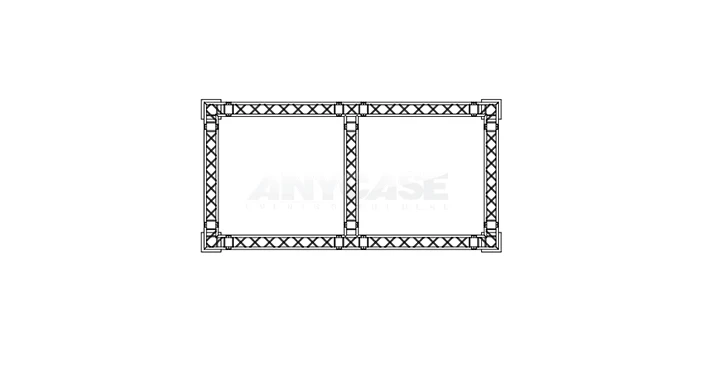

6m(L)x3m(D)x4m(H) Top view

6m(L)x3m(D)x4m(H) Top view

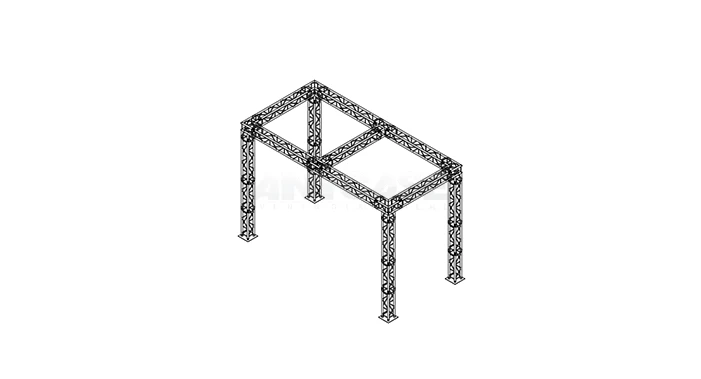

6m(L)x3m(D)x4m(H)  45° view

6m(L)x3m(D)x4m(H) 45° view

Project Quantity Details and SPEC

Accessories Parts SPEC QTY
290x290mm x1.5m for angle top roof 50x3.0mm 2
290×290mm x2.5m for middle roof beam 50x3.0mm 12
400x400mm xlm for pillar stand 50x3.0mm 6
400x400mmx3m for pillar stand 50x3.0mm 18
520x520mm x2.5m for Beam 50x3.0mm 10
520x520mm x3m for Beam 50x3.0mm 8
Accessories Parts SPEC QTY
290×290mm Roof Ladder Truss single pieces x2.5m 12
520x520mm Ladder Truss 2.5m for the Strengthn Wing 1.8m 4
Ladder truss top part 6
Ladder truss bottom part 6
Four side corner of roof top angle 2
Connector for roof 4
Accessories Parts SPEC QTY
Connector Clamps for middle angle (520x290mm) 2
Sleeve Block(520*400mm) 6
Hinge 24
Basement with wheels 6
Outrigger/Bracing 24
Top section for electrict motor 6
Accessories Parts SPEC QTY
Safety Blet 6
Fire Retardant Roof Cover. Roof :14x10m. 1
Electric Motor 6
6 ports Motor controller and the cables powers 1
Pins and Clips N

Heavy Duty Structure 6x3x4

Made from Aluminum 6082-T6



Optional Material Thickness

2.0mm / 3.0mm / 4.0mm

Customized Shape

Fancy and free design



Size Range

220x220mm / 290x290mm / 400x400mm / 520x520mm

600x600mm/ 520x600mm / 520x760mm And More

Option Color

Black/White/Silver/Gold

More Solutions and Case Studies

7x7x4m Diamond Design

7x7x4m Diamond Design

8x6x5m Arch Roof with wings

8x6x5m Arch Roof with wings

8x8x8m Arch Roof with wings

8x8x8m Arch Roof with wings

9x6x4m Medium Booth

9x6x4m Medium Booth

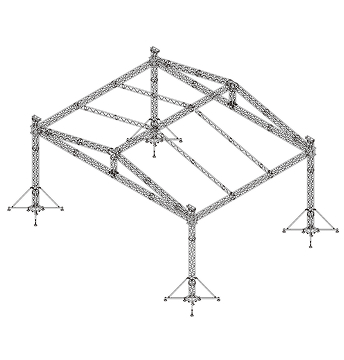

12x8x5 Triangle Roof

12x8x5 Triangle Roof

12x10x8m Arch Roof

12x10x8m Arch Roof

12x12x10m Arch Roof

12x12x10m Arch Roof

How to Setup Triangle Roof Truss for an event?

triangle roof truss

Roof truss construction installation guide

The setup process is straight forward with the right equipment-

assemble the triangular roof structure on the ground, connect the horizontal sections, and use professional hoists for a safe lift.

We supply durable, easy-to-assemble trussing systems that ensure your event’s production is solid from the ground up.

Loading capacity of this project

12m(L)x10m(D)x10m(H) Project loading capacity

Wings center point 3500kgs (7700lbs)
40ft Beam Uniformly Distributed Load 2340kgs (5148lbs)
30ft Beam Uniformly Distributed Load 2920kgs (6424lbs)

More Loading table sheet

A291-A293 TRUSS

A221-A223 TRUSS

Packing Dimension of this project

Packing Dimension of this project
