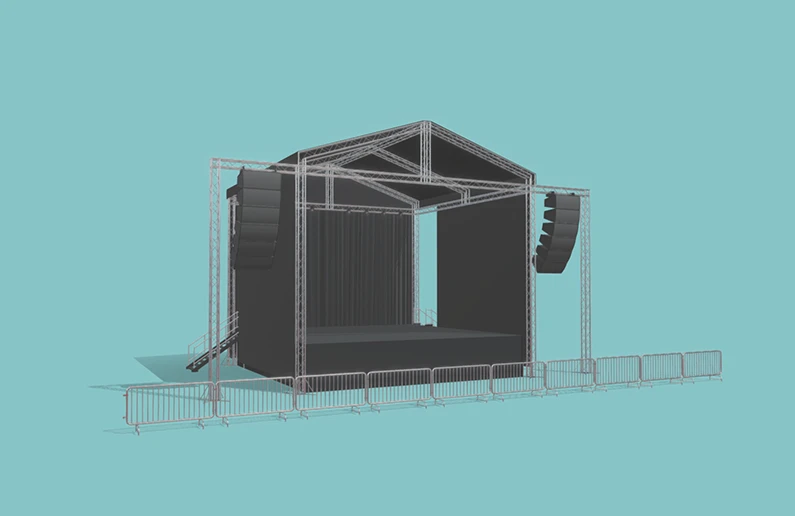

triangle truss structure
Try 360° Project View

ANYCASE is a leading manufacturer of staging and truss systems

We provide event companies worldwide with building safer, smarter, and more cost-efficient setups

No matter big event or small events, contact us for free quote now

Contact Us

Concert Project SPEC

Popular 12x8x5 Triangle Roof Structure

39’(L)x26’(D)x16’(H)

12m(L)x8m(D)x5m(H)

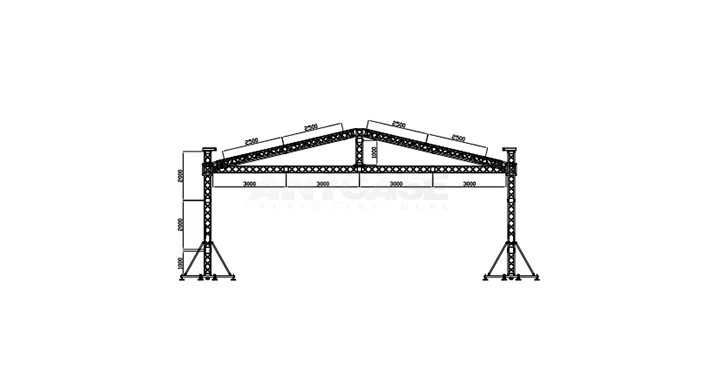

12m(L)x8m(D)x5m(H) Front view

12m(L)x8m(D)x5m(H) Front view

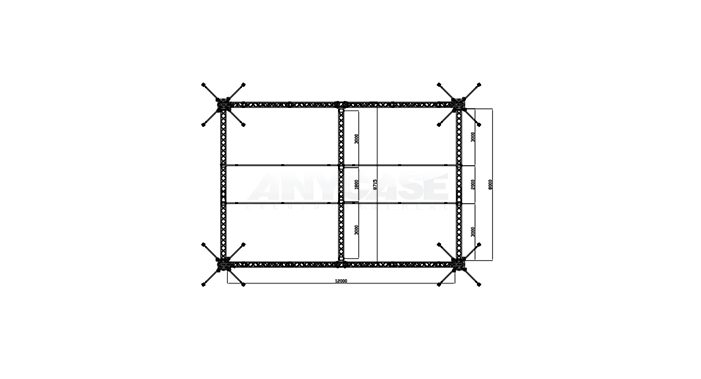

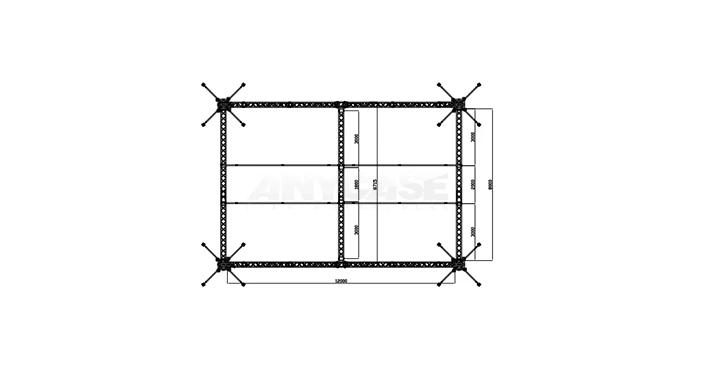

12m(L)x8m(D)x5m(H) Top view

12m(L)x8m(D)x5m(H) Top view

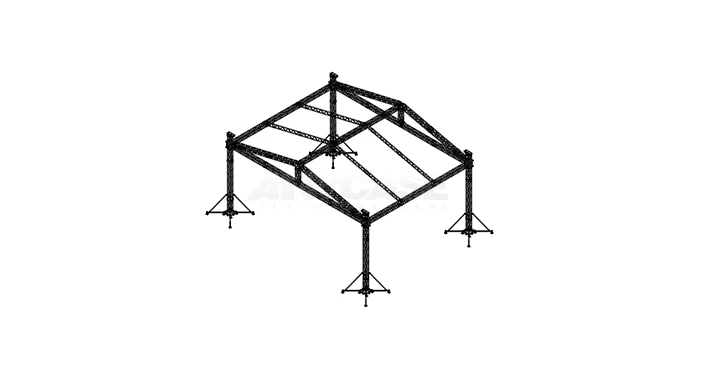

12m(L)x8m(D)x5m(H)  45° view

12m(L)x8m(D)x5m(H) 45° view

Project Quantity Details and SPEC

Accessories Parts SPEC QTY
Aluminum Truss 290*290mm Length 3M for Beam 12
Aluminum Truss 290*290mm Length 2M for Beam 2
Aluminum Truss 290*290mm Length 2M for Stand 8
Aluminum Truss 290*290mm Length 1M for Stand 4
Aluminum Truss 290*290mm Length 2.5M for Middle Roof 8
Aluminum Truss 290*290mm Length 3M for Middle Roof 2
Aluminum Truss 290*290mm Length 2M for Middle Roof 1
Ladder Truss for Middle Roof  8
Roof Corner  4
Middle corner  2
Ladder Truss connector  8
Middle connector for the beam point  2
Baseplates with wheels  4
Outtriangle brace support 16
Sleeve Blocks  4
Spigot Truss Hinge 16
Top sections for hanger hosit 4
Manual Hoist with 8m chains 4
Lifting Belts 4

Heavy Duty Structure

Made from Aluminum 6082-T6



Optional Material Thickness

2.0mm / 3.0mm / 4.0mm

Customized Shape

Fancy and free design

Size Range

220x220mm / 290x290mm / 400x400mm / 520x520mm

600x600mm/ 520x600mm / 520x760mm And More



Optional Colors

Black/White/Silver/Gold

More Solutions and Case Studies

6x3x4 small booth

6x3x4 small booth

7x7x4m Diamond Design

7x7x4m Diamond Design

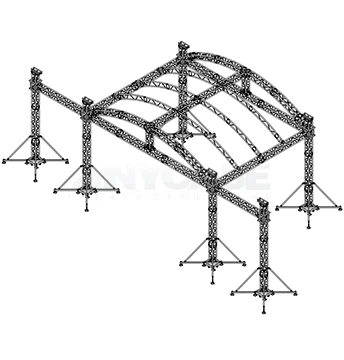

8x6x5m Arch Roof with wings

8x6x5m Arch Roof with wings

8x8x8m Arch Roof with wings

8x8x8m Arch Roof with wings

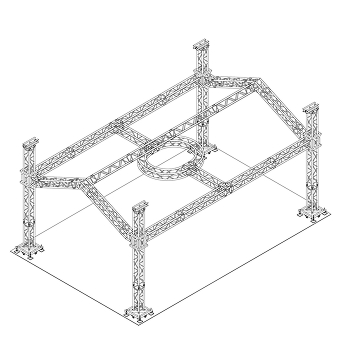

9x6x4 medium booth

9x6x4 medium booth

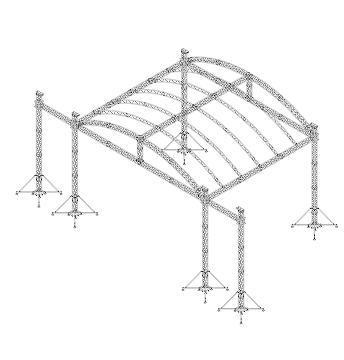

12x10x8m Arch Roof

12x10x8m Arch Roof

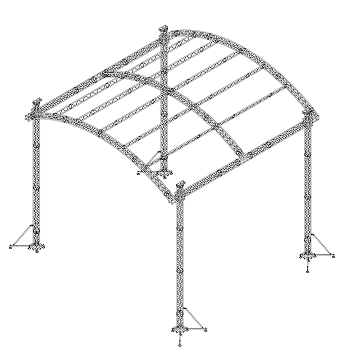

12x12x10m Arch Roof

12x12x10m Arch Roof

How to Set up Triangle Roof Truss for an event?

Roof truss construction installation guide

The setup process is straight forward with the right equipment

assemble the triangular roof structure on the ground, connect the horizontal sections, and use professional hoists for a safe lift

Anycase supply durable, easy-to-assemble trussing systems that ensure your event production is solid from the ground up

Loading capacity of this project

12m(L)x10m(D)x10m(H) Project loading capacity

Wings center point 3500kgs (7700lbs)
40ft Beam Uniformly Distributed Load 2340kgs (5148lbs)
30ft Beam Uniformly Distributed Load 2920kgs (6424lbs)

More loading table sheet

A291-A293 TRUSS

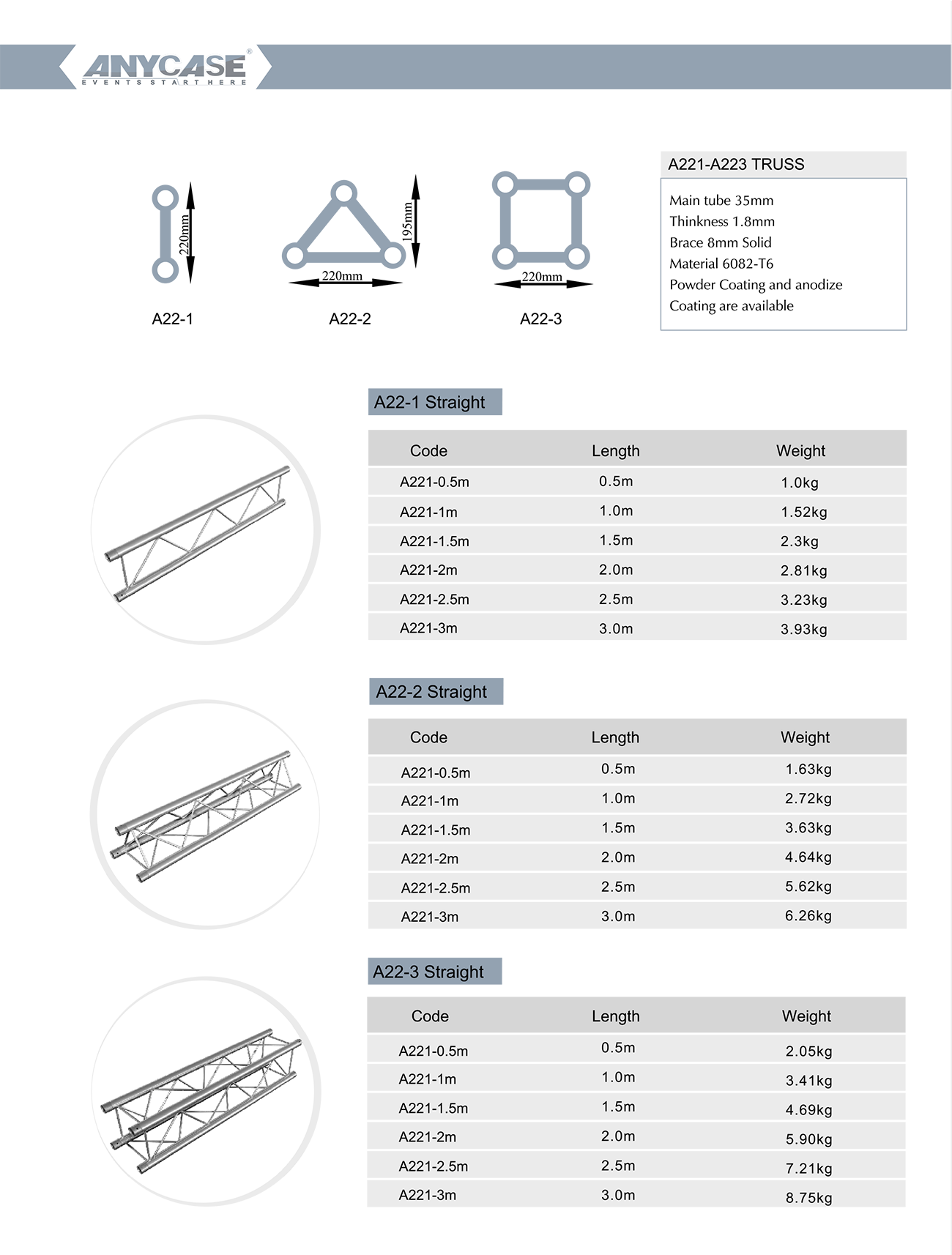

A221-A223 TRUSS

Packing Dimension of this project

Packing Dimension of this project

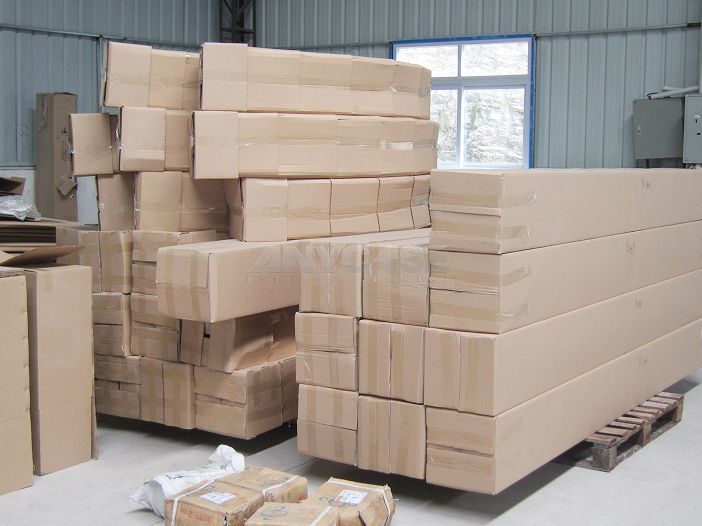

paper boxes
