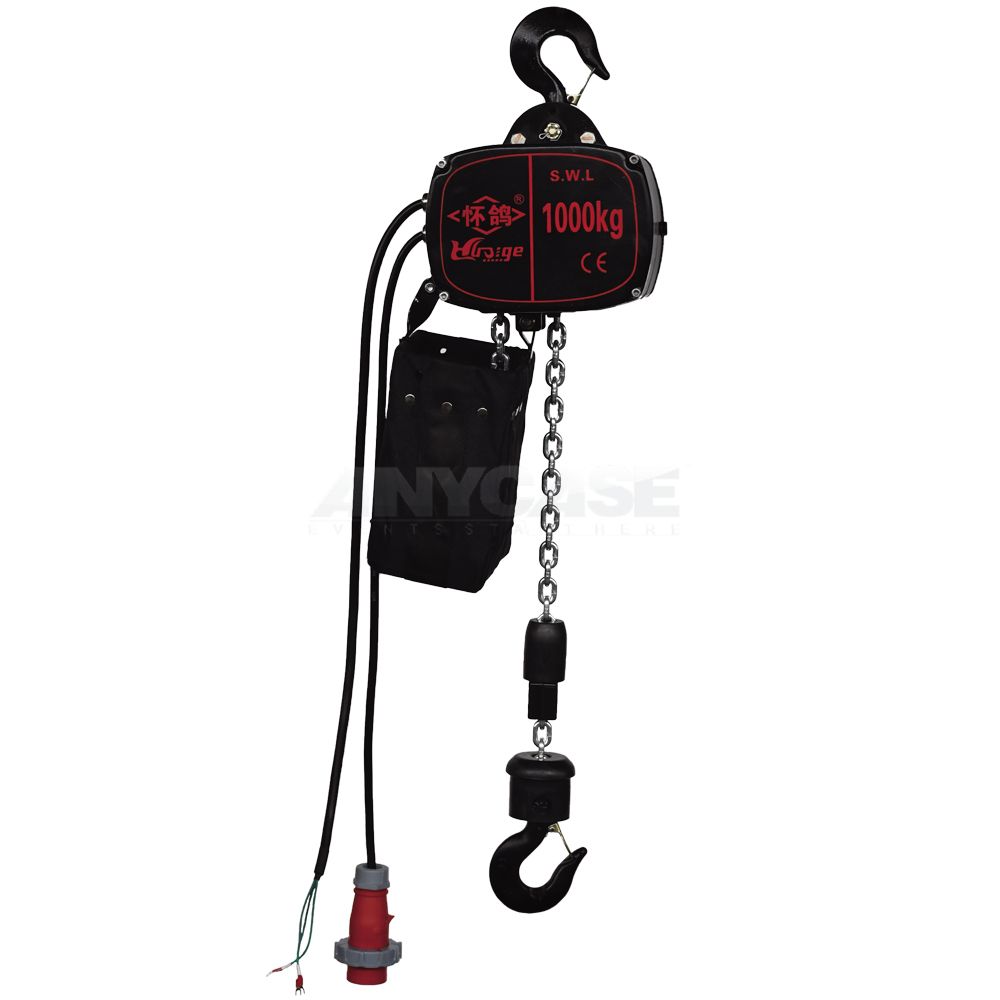

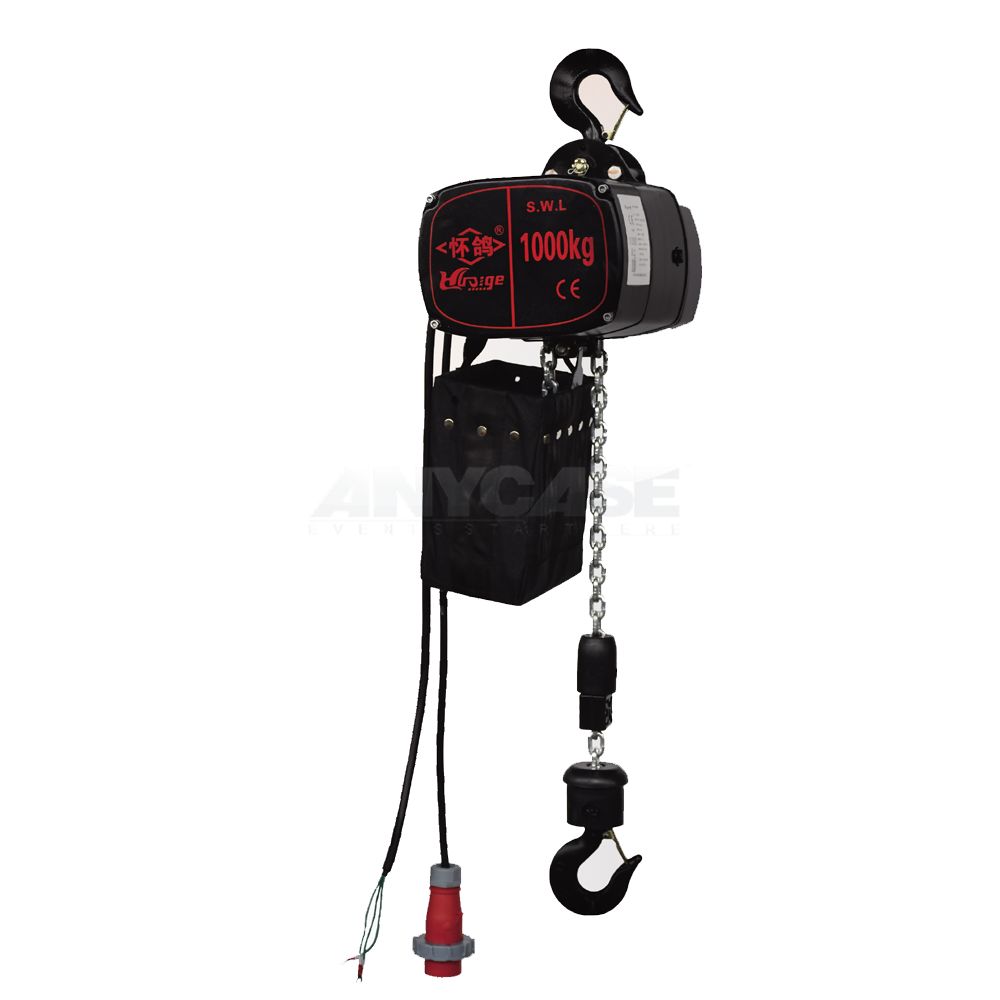

Electric chain hoist HGA9 Pro 1000 for Stage Shows

ANYCASE® Electric Stage Hoist is a reliable and heavy-duty lifting solution designed for professional stage and event applications. It is widely used in concert productions, touring shows, film sets, and commercial events where safe and precise lifting of heavy equipment is required, including lighting systems, speaker arrays, and aluminum truss structures.

Powered by a high-performance electric motor, the hoist delivers smooth and accurate control of lifting speed and load positioning, ensuring safe operation at all times. Built to meet international safety standards, it provides dependable protection for valuable stage equipment during setup and operation.

Color Selection

Inquire Now Next Product

Technical Parameter

Model	HGA9 Pro 1000
SWL acc.	1000 Kg
Lifting speed (m/min)	5/7
Supply voltage	220-440V, 3ph, 50/60Hz (See Figure5,P9)
Control voltage	36V low voltage control
Power supply cable	1m power supply cable, CEE-16A/4 cord
Chain acc. EN818-7 (mm)	71*21
Chain net weight (Kg/m)	1.1
Grade of chain	G80
Chain surface	Parkerized (black)
Chain falls	1
Chain Guide	Precise chain guide with 5-pocket chain wheel
Chain bag	1 textile chain bag, detachable, ≤30 meters
Full load noise level (db)	≤65
Brake	1AC brake
Load hook	1-down / turntable
Suspension	Swivel hook
Mounting position	stationary
Plastic handles	without
Protection level	IP55
Weight without chain (kg)	47
Motor power (KW)	ca.1.5
Current consumption (A)	ca.3.7
Mechanism class /FEM9.511	1Bm/ 25% ED
Limit mode	Upper and lower electronic contact limit
Color	black, RAL 9005 matt

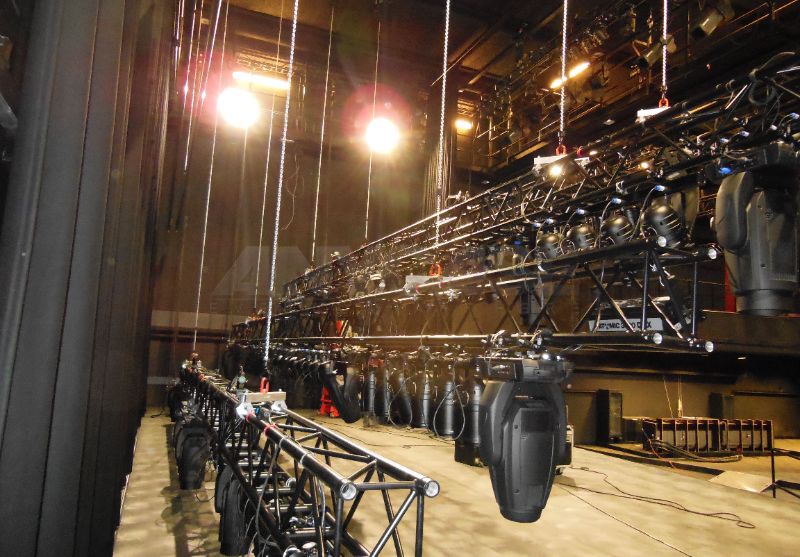

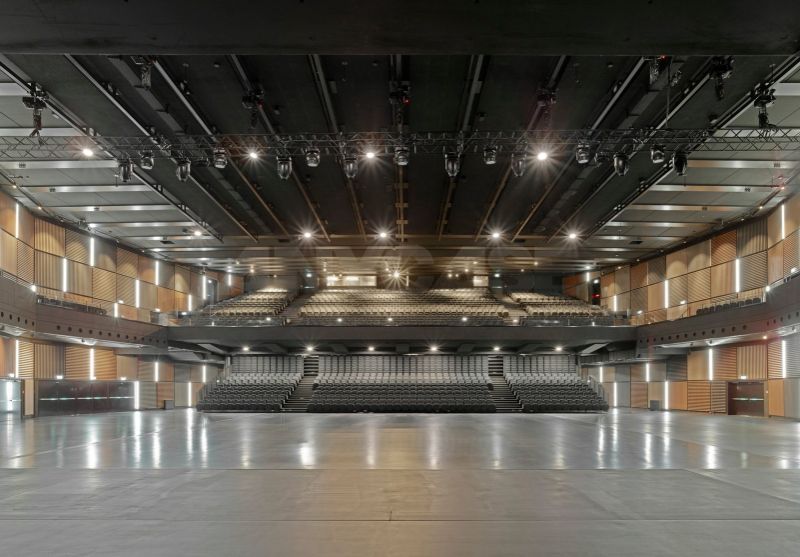

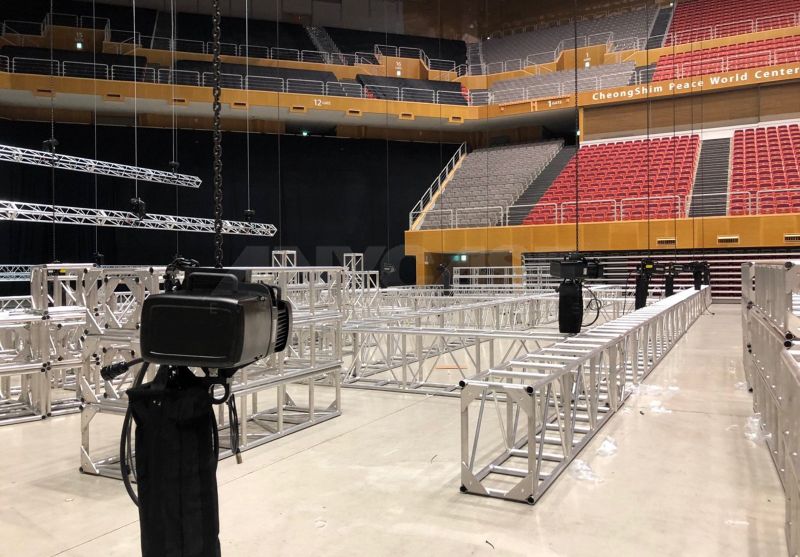

Idear For

Product Drawings

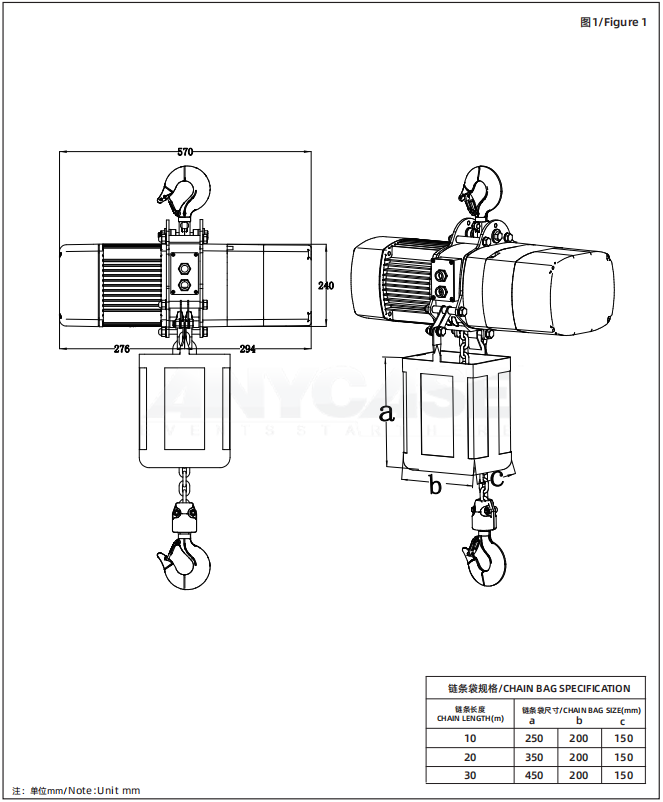

ELECTRIC CHAIN HOIST SIZE

Electric chain hoist HGA9 Pro 1000 for Stage Shows

HOOK ASSEMBLY

Electric chain hoist HGA9 Pro 1000 for Stage Shows

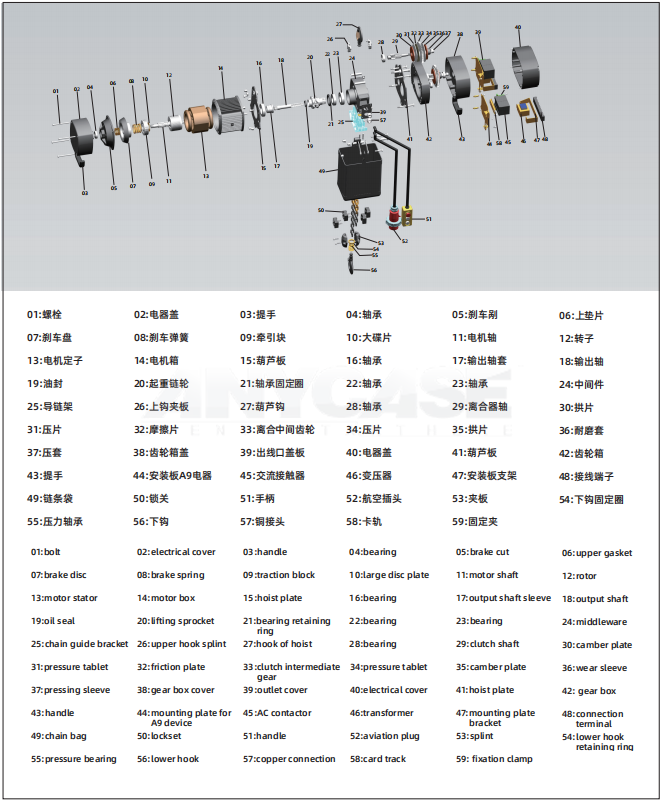

PRODUCT STRUCTURE

Electric chain hoist HGA9 Pro 1000 for Stage Shows

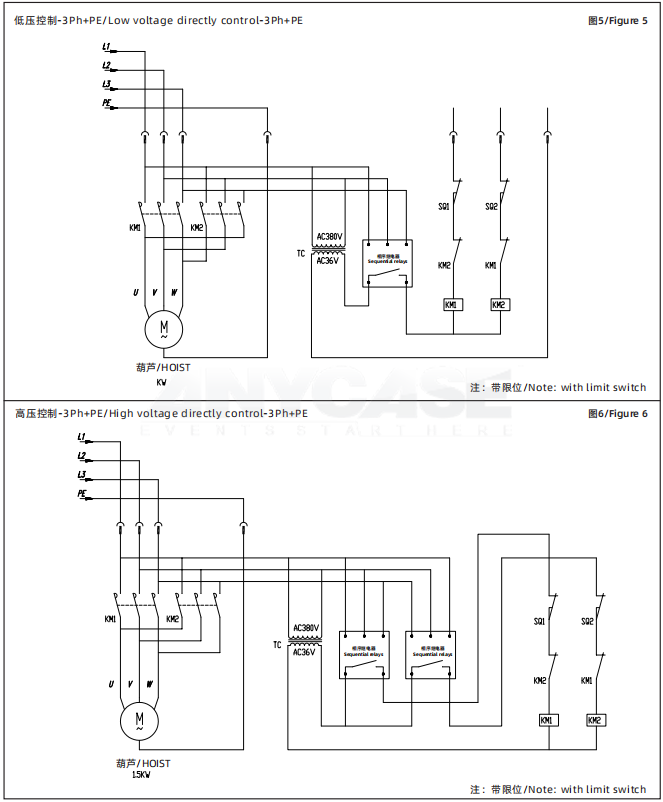

Electrical wiring diagram

Electric chain hoist HGA9 Pro 1000 for Stage Shows

Document Download

HGA9 Pro 1000.pdf
