Custom LED Stage Solutions For Professional Event Production

A Led Stage uses modular light-emitting diode panels to display video, graphics, live camera feeds, and branded content behind or around a performance area. Unlike a fixed projector, an LED display produces its own light, so it can remain visible in bright halls, outdoor venues, and broadcast environments. This guide explains custom LED stage solutions for professional event production, including LED stage screens for concerts, rental LED stage displays for corporate events, and the technical choices that affect image quality, safety, setup time, and cost.

What Is an LED Stage?

An LED stage is a performance or presentation area that includes one or more LED video walls, creative LED shapes, LED floors, or transparent LED structures. Each panel contains many small LEDs arranged in pixels. A controller receives video input and sends the correct signal to each cabinet.

The main industry terms are easy to understand:

• Pixel pitch: The distance between the centers of two neighboring pixels, measured in millimeters. A smaller pitch gives a sharper image at close viewing distances.
• Brightness: The amount of light produced by the screen, normally measured in nits or candelas per square meter. Indoor and outdoor screens need different brightness levels.
• Refresh rate: How many times the display updates its image per second, measured in hertz. A higher refresh rate can reduce visible flicker in camera footage.
• Viewing angle: The horizontal and vertical range in which viewers can see acceptable color and brightness.
• IP rating: The level of protection against dust and water. For example, IP65 generally indicates dust protection and protection against water jets on the front side, although the exact cabinet design must be checked.
• Receiving card: The electronic component inside the display system that processes data sent from the video controller.
• Novastar or Brompton processing: Common control and image-processing platforms used in professional LED display systems. The selected processor affects scaling, redundancy, calibration, and signal management.

LED stage technology is different from an LED lighting fixture. A lighting fixture creates colored or white light beams. An LED screen creates a controlled image made from pixels. Many productions use both systems together to create depth, movement, and a consistent visual identity.

Why LED Stage Systems Matter for Modern Events

Audiences now expect event content to be visible from every seat and recognizable on mobile video. A stage background that looks acceptable from the front may appear too dark, washed out, or empty in a livestream. An LED stage solves this problem by combining large-scale visuals with real-time content control.

Its value can be measured through production functions rather than vague claims:

• Live content: Cameras, presentations, sponsor logos, subtitles, and social media feeds can be shown without changing the physical backdrop.
• Flexible stage design: Cabinets can be arranged as a flat wall, curved screen, corner display, hanging banner, floor tile, or custom shape.
• Camera compatibility: A suitable refresh rate, shutter setting, and processing chain can help reduce scan lines and flicker during filming.
• Brand control: A production team can schedule different visual scenes for opening sequences, speaker introductions, product demonstrations, and closing content.
• Reuse: Rental panels can be rebuilt for different venue sizes, while fixed installations can support repeated events in one location.

The U.S. Department of Energy explains that LEDs are semiconductor devices that convert electrical energy into light. Their performance depends on factors such as thermal management, drive current, and product design. This is why LED stage quality cannot be judged by resolution alone. Heat control, power supplies, calibration, cabinet structure, and control software also affect long-term performance.

LED Stage Applications by Event Type

Concerts and Touring Productions

Concerts often require large visuals, quick setup, repeated transportation, and strong brightness. Rental LED stage panels can form a main backdrop, side screens, delay screens, or a floor display. Creative layouts may include curved wings, moving scenic elements, and hanging video banners.

For touring work, check:

• Cabinet weight and dimensions
• Fast-locking connection design
• Front and rear service access
• Power and signal redundancy
• Flight case protection
• Outdoor weather protection when required

Corporate Conferences and Product Launches

Corporate events usually need readable text, speaker images, presentation slides, sponsor logos, and clean camera shots. A smaller pixel pitch may be useful when the audience sits close to the screen or when a camera captures detailed graphics.

The production team should prepare content in the correct aspect ratio. A screen with a non-standard shape may require custom canvas sizes and additional content mapping. This should be planned before the event rather than corrected during rehearsal.

Broadcast Studios and Livestream Sets

Broadcast LED walls must be selected with camera behavior in mind. A display may look stable to the human eye but show horizontal bands or flicker on camera if the refresh rate, scan mode, shutter speed, or camera frame rate are not properly matched.

Industry suppliers such as Brompton Technology provide processing tools for camera-friendly LED workflows, including features designed to manage scan artifacts and improve on-camera output. The exact result still depends on the LED module, processing system, camera, lens, shutter angle, and studio lighting.

Exhibitions and Trade Shows

Exhibition booths have limited floor space but need to attract visitors from several directions. Lightweight LED walls, transparent LED panels, curved displays, and narrow columns can create visual impact without covering the entire booth.

When planning an exhibition LED stage, confirm the venue’s electrical limits, ceiling height, rigging rules, fire regulations, loading schedule, and installation window.

Outdoor Festivals and Public Events

Outdoor displays must handle sunlight, wind, moisture, dust, and uneven ground conditions. Outdoor LED stage panels normally use higher brightness and stronger cabinet protection than indoor products. However, an IP rating does not remove the need for proper drainage, cable protection, grounding, and weather planning.

Outdoor production managers should also consider the sun’s direction. A screen facing direct sunlight may require a different brightness level and viewing position than a screen placed under a roof.

How to Select the Right LED Stage Screen

1. Measure the Viewing Distance

Viewing distance is one of the most important factors in pixel-pitch selection. A simple planning rule is:

Approximate minimum viewing distance in meters ≈ pixel pitch in millimeters.

For example, a 2.6 mm display may be suitable for viewers approximately 2.6 meters or farther away, depending on content, camera use, and visual expectations. This is a planning estimate, not a universal engineering standard. A screen used for small text or close-up camera shots may need a finer pitch.

2. Match Brightness to the Venue

Indoor displays often need less brightness than outdoor displays because they are not competing with direct sunlight. Excessive brightness can create eye strain, reduce camera exposure flexibility, and make skin tones appear unnatural.

Ask the supplier for measured brightness data, calibration conditions, and brightness control range. Do not compare two products only by their maximum brightness because the usable operating level may be lower.

3. Check Refresh Rate and Gray Scale

A refresh rate of 3,840 Hz or higher is commonly requested for camera-based event production, but the number alone does not guarantee a clean image. The complete system must be tested with the intended camera and shutter settings.

Gray scale affects how smoothly the screen displays dark shades and transitions. This is especially important for concert scenes, black backgrounds, skin tones, and cinematic content. Request a camera test using the actual video processor and LED modules before approving a large order.

4. Review Cabinet Design and Service Access

Rental LED stage cabinets should be easy to carry, align, connect, and repair. Ask whether modules, power supplies, receiving cards, and cables can be replaced on-site. Front-service access is useful when the screen is installed close to a wall or scenic structure.

Important cabinet questions include:

• What is the cabinet weight?
• What are the cabinet dimensions?
• Can the panel support curved or creative configurations?
• Is the structure suitable for stacking or hanging?

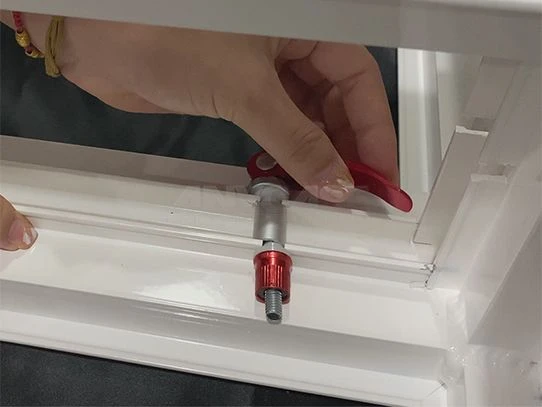

• How are cabinets locked together?
• What spare parts are supplied?
• How is color calibration maintained after module replacement?

5. Confirm Power and Signal Requirements

An LED stage needs a planned power distribution system. The calculation should include the number of cabinets, maximum and average power consumption, voltage, circuit capacity, cable length, and backup requirements.

Signal planning should cover the video source, switcher, processor, fiber or network transmission, backup path, and output resolution. A basic signal chain may look like this:

Camera or media server → video switcher → LED processor → sending card → receiving cards → LED modules.

For important events, the production team may use dual power supplies, redundant signal paths, spare cabinets, and a backup processor. These measures reduce the chance that one failed component will interrupt the entire screen.

LED Stage Installation Process

Step 1: Define the Event Requirements

Record the venue, screen size, viewing distance, audience capacity, event duration, indoor or outdoor location, camera use, content format, installation time, and removal time. Also identify whether the display is fixed, rented, flown, ground-supported, or integrated into a stage set.

Step 2: Create a Technical Layout

The layout should show the screen dimensions, cabinet arrangement, support structure, access routes, cable paths, power distribution, sightlines, and emergency exits. For a curved screen or unusual shape, confirm the minimum curve radius and mechanical limits of the chosen cabinets.

Step 3: Approve Content Specifications

Calculate the native pixel resolution from the cabinet layout. For example, a screen built with 12 cabinets across and 6 cabinets high will have a different pixel canvas from a 10-by-6 arrangement, even when the physical size appears similar.

Prepare content using the correct resolution, frame rate, color space, and aspect ratio. Leave safe margins for text and logos because viewers at the sides may see a different perspective than viewers in the center.

Step 4: Build and Align the Screen

Technicians install the support structure, connect cabinets, check flatness, attach power and signal cables, and label each section. Uneven cabinets can create visible lines or brightness changes, so mechanical alignment matters as much as electronic calibration.

Step 5: Test Before Rehearsal

Run a complete test with white, black, red, green, blue, gray-scale, skin-tone, and moving-content patterns. Check for dead pixels, color differences, flicker, signal loss, overheating, loose connections, and abnormal fan noise.

For camera production, test the actual camera positions and lenses. Record short clips at the planned shutter speeds and frame rates. This test is more reliable than viewing the screen only with the naked eye.

Step 6: Operate and Monitor During the Event

Assign one technician to watch temperatures, power status, processor alarms, and signal stability. Keep spare modules, power supplies, data cables, receiving cards, and fuses available when the event cannot tolerate downtime.

Advantages of Custom LED Stage Solutions

Better Visual Control

A custom LED stage can display a different scene for every part of the program. The same physical system can support a keynote, a product video, a live camera feed, a sponsor loop, and a performance backdrop.

Flexible Shapes and Dimensions

Standard flat walls are only one option. Depending on the product, designers can create corner walls, curved backgrounds, hanging screens, LED floors, columns, arches, and transparent sections. Custom planning helps the screen fit the stage instead of forcing the stage to fit a standard screen.

Improved Audience Visibility

Direct-view LED remains visible without a projector lens or projection surface. This is useful when stage lighting, haze, audience movement, or ambient light would reduce projector contrast.

Reusable Event Assets

Rental panels can be used at multiple venues. A modular system may be rebuilt into different widths and heights, which supports touring schedules and recurring corporate events.

More Effective Brand Presentation

Animated logos, synchronized transitions, product renderings, and live data can create a consistent brand experience. Content can also be updated during the event without replacing printed graphics.

Common LED Stage Problems and Practical Solutions

Problem: The Screen Looks Blurry Up Close

Cause: The pixel pitch is too large for the viewing distance, or the source content has low resolution.

Solution: Measure the nearest audience position and select a smaller pixel pitch when close viewing is expected. Also check the media server output and scaling settings.

Problem: Horizontal Lines Appear on Camera

Cause: The camera shutter, frame rate, LED refresh behavior, scan mode, or processor settings are not matched.

Solution: Perform a camera test, adjust shutter settings, check processor configuration, and request a display designed for broadcast use.

Problem: Color Is Different Between Cabinets

Cause: Mixed production batches, module replacement, calibration loss, or inconsistent operating conditions.

Solution: Use calibrated modules from the same batch where possible. Recalibrate the affected area and keep replacement modules recorded by cabinet position.

Problem: The Screen Is Too Bright

Cause: Maximum brightness is being used in a darker indoor venue.

Solution: Set brightness according to ambient light and camera exposure. A controlled brightness level often produces more natural faces and better image balance.

Problem: The Screen Stops During the Show

Cause: Power overload, loose data cables, failed receiving cards, processor errors, or insufficient redundancy.

Solution: Divide the display across correctly rated circuits, test every connection, monitor alarms, and prepare spare components and a documented recovery procedure.

Problem: Outdoor Panels Get Moisture Damage

Cause: Incorrect product selection, poor cable protection, standing water, or installation outside the manufacturer’s environmental limits.

Solution: Select an outdoor-rated system, follow the specified IP protection conditions, protect connectors, provide drainage, and stop operation when weather conditions exceed the product rating.

LED Stage Maintenance Checklist

• Inspect power and signal cables before every event.
• Check cabinet locks, hanging points, stacking supports, and safety cables.
• Clean dust from ventilation areas according to the manufacturer’s instructions.
• Monitor operating temperature and unusual fan noise.
• Test backup processors and spare power supplies.
• Record dead pixels, color shifts, and module replacements.
• Store rental cabinets in dry, protected flight cases.
• Keep firmware, processor files, calibration files, and screen mapping backups.

LED maintenance should follow the manufacturer’s service manual. Opening cabinets or changing electrical components without trained technicians can create shock, fire, and warranty risks.

How to Compare LED Stage Suppliers

Price per square meter is only one part of the decision. Compare suppliers using the complete production requirement:

Ask for a physical demonstration or a camera test whenever possible. A product specification sheet cannot show cabinet alignment, skin-tone performance, fan noise, installation speed, or real-world service quality by itself.

Trusted Technical References for LED Stage Planning

Professional buyers can use the following industry and technical resources when checking an LED stage proposal:

• — explains LED operation, efficiency factors, and performance considerations.
• — provides professional LED processing information and resources for broadcast and live-event applications.
• — provides LED display control and processing technologies used in many event systems.
• — publishes international electrical and electronic standards relevant to equipment compliance and safety.
• — supports professional audiovisual standards, training, and industry guidance.

Always confirm the current version of a standard, local building code, venue rule, and manufacturer specification before installation. Requirements can vary by country, venue, structure, and event type.

Frequently Asked Questions About LED Stage Systems

What is the best pixel pitch for an LED stage?

There is no single best pitch. Choose it according to the nearest viewing distance, content detail, camera use, screen size, and budget. A 2.6 mm or 2.9 mm panel may suit many indoor events, while 3.9 mm or larger panels are often used for larger venues and longer viewing distances.

Is an LED stage better than a projector?

It depends on the venue and production goal. LED usually provides stronger direct brightness and does not require a projection surface. A projector may be suitable when a very large image, low equipment weight, or special projection effect is required. Venue light, throw distance, content type, and rigging limits should guide the choice.

Can an LED stage be used outdoors?

Yes, if the system is designed for outdoor use and installed within its stated environmental limits. Check brightness, IP protection, wind loading, temperature range, grounding, drainage, and structural support before use.

What refresh rate is needed for live video?

Many professional event buyers request at least 3,840 Hz, but the correct setting depends on the complete camera and LED system. Always test the display with the actual camera, shutter speed, frame rate, processor, and content.

How long does it take to install an LED stage?

Installation time depends on screen size, cabinet type, support structure, cable routes, rigging, and venue access. A small modular wall may be assembled in a short setup window, while a large flown or custom-shaped display requires structural inspection, alignment, signal testing, and rehearsal time.

Can LED stage panels display live camera feeds?

Yes. A video switcher or media system can send camera feeds to the LED processor. The production team should test latency, scaling, frame synchronization, image crop, and camera flicker before the event starts.

What information should I send when requesting a quotation?

Provide the screen width and height, indoor or outdoor location, nearest viewing distance, event date, installation schedule, camera requirements, content resolution, support method, expected operating hours, venue power details, and whether you need delivery, installation, operation, or dismantling.

Next Steps for Your LED Stage Project

Begin with a site survey and a written production brief. Measure the audience area, identify the nearest and farthest viewing points, confirm camera positions, and check power and rigging limits. Then request a proposal that includes pixel pitch, brightness, refresh rate, cabinet dimensions, power data, structural method, signal workflow, spare parts, installation labor, and safety documentation.

Before approving the final system, review the user guide, test the content files, and complete a full camera rehearsal. For custom layouts, ask ANYCASE about Custom LED Stage Solutions For Professional Event Production that match your venue, stage design, viewing distance, and event schedule. A clear technical plan at the beginning reduces setup delays and helps the LED stage perform reliably when the audience and cameras are present.
